Main technical parameters:
Parameter Model | 6 colors | 8 colors | 12 colors |
Power voltage | Three-phase 380 V supply cable: 5-core, 6 mm² per core. | Three-phase 380 V supply cable: 5-core, 8 mm² per core. | Three-phase 380 V supply cable: 5-core, 12 mm² per core. |
Machine installation requirements | 380V,Compressed air,20 kg thermal oil | 380V,Compressed air,30 kg thermal oil | 380V,Compressed air,40 kg thermal oil |
PLC | XINJE | XINJE | XINJE |
Touch screen | (XINJE) Touchwin | (XINJE) Touchwin | (XINJE) Touchwin |
Filling motors | Stepper motor | Stepper motor | Stepper motor |
Total power | 6.5KW | 8.5KW | 14KW |
Stirring motor | 40W*6=240W (ToyoDenki) | 40W*8=320W (ToyoDenki) | 40W*12=480W (ToyoDenki) |
Barrel heating tube | 600W*6=3600W | 600W*8=4800W | 600W*12=7200W |
Heating tube 12 power | 60W*12 =720W | 60W * 16 =960W | 60W * 24 =1440W |
Nozzle plug power | 1KW | 1KW | 1KW |
Maximum stirring speed | 60 RPM | 60 RPM | 60 RPM |
Barrel diameter size (mm) | 215d*215h is approximately equal to 6L volume | 215d*215h is approximately equal to 6L volume | 215d*215h is approximately equal to 6L volume |
Filling range (measured by water) | 0.5~10ml | 0.5~10ml | 0.5~10ml |
Filling accuracy | ±0.1ml | ±0.1ml | ±0.1ml |
Number and spacing of nozzle insert holes | 195 holes with spacing ≤4 mm | 195 holes with spacing ≤4 mm | 195 holes with spacing ≤4 mm |
Capacity | 25~40PCS/min(depending on filling amount and material formula) | 25~40PCS/min(depending on filling amount and material formula) | 25~40PCS/min(depending on filling amount and material formula) |
Machine size (L*W*H) | 850*1600*1600mm | 900*1600*1600mm | 1100*1600*1600mm |
Net weight | 380KG | 480KG | 550KG |
Usage and function:

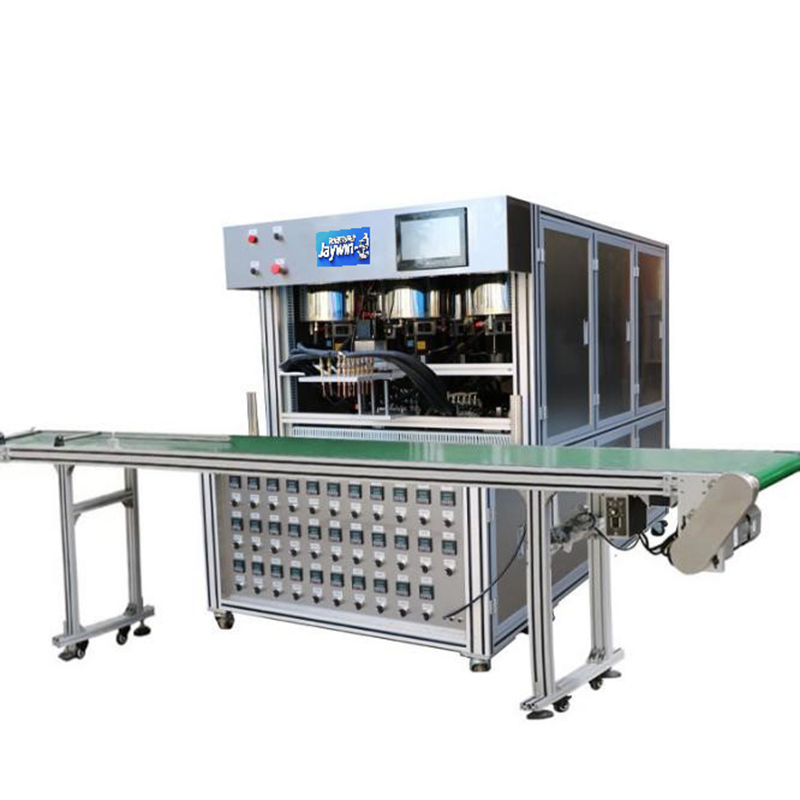

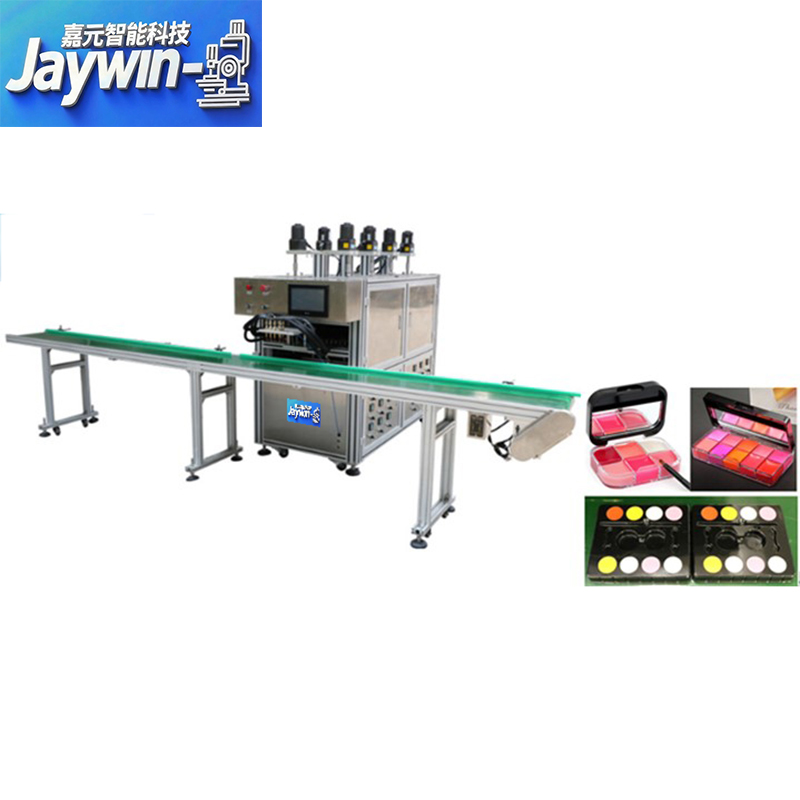

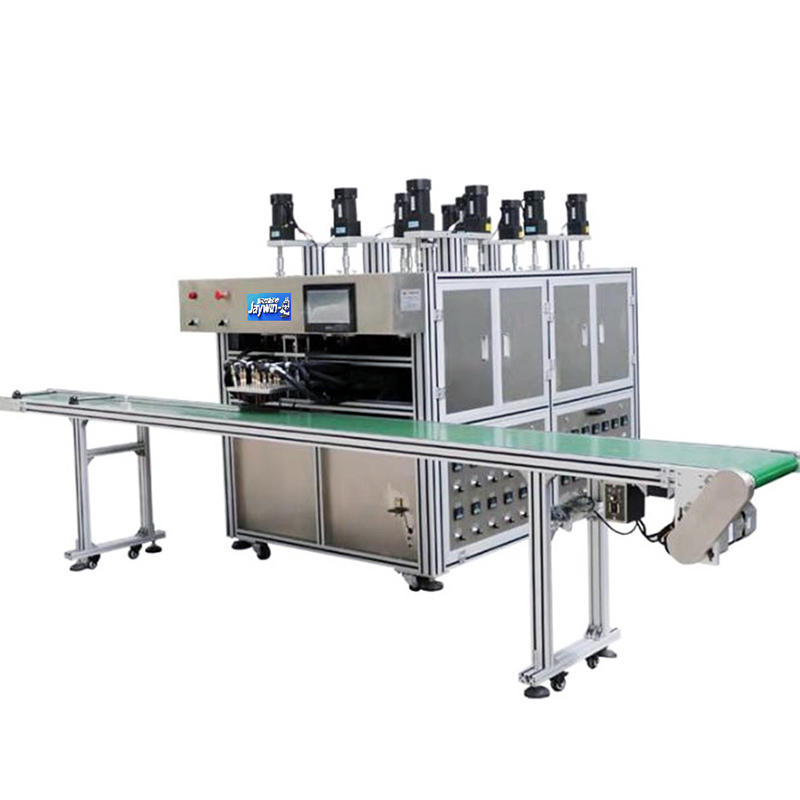

This machine is designed for filling various cosmetic materials including single-color and multi-color disc-shaped lipsticks, children's lip glosses, water-based cream, and eyeshadow pastes. The touchscreen interface simplifies operation, while conveyor belts and fiber optic sensors enable automated material detection and packaging. It efficiently handles multi-color simultaneous filling with rapid processing speed and precise pump metering.
