Shampoo and Conditioner Filling Equipment Guide for Hair Care Product Manufacturing

Choosing the right filling equipment for shampoo and conditioner depends on four factors: product viscosity, container type, required output, and compliance needs. Filling equipment moves your finished formula from a mixing tank into its final package. In hair care manufacturing, you purify water, heat ingredients, add surfactants, cool the batch, and then fill bottles. The filler sits at the end of this process, and it determines your line speed, fill accuracy, and product safety. You must match the machine to how your formula behaves at filling temperature. Thick conditioners demand different handling than thin shampoos.

Key Takeaways

• Match your filler choice to product thickness, bottle shape, output speed, and hygiene standards.

• A servo piston filler works best for thick conditioners. It gives accurate fills without drips.

• Use gear pump or flow meter fillers for thin shampoos. Both deliver fast, accurate filling.

• Choose semi-automatic equipment for small batches. A fully automatic line is better for high-volume production.

• Test real formula samples with your bottles before purchase. Confirm certifications plus supplier support first. These steps protect your brand.

Why Filling Equipment Matters

Hair care manufacturing combines surfactants, conditioners, and other ingredients into a finished formula. You then fill that formula into bottles for retail sale. The filling equipment you choose directly affects how fast your line runs, how accurate each bottle is, and how well you meet hygiene standards.

Common Production Challenges

Thick or viscous formulas move slowly through pumps and nozzles. A rich conditioner may resist flow, while a thin shampoo can splash or drip. Foaming creates another problem. When you pump a surfactant-heavy shampoo, air bubbles form and throw off fill volumes. Bottle compatibility adds complexity. A round PET bottle behaves differently on a conveyor than an oval HDPE container. Hygiene compliance demands stainless steel contact parts and closed hoppers to prevent contamination. Production bottlenecks often appear when your filler cannot keep pace with your mixing tank or capping station.

Cost of Inaccurate Filling

Accuracy is key for brand integrity. A bottle that holds too little product cheats your customer. A bottle that holds too much wastes your formula and cuts into profit margins. Automated filling enhances efficiency, fills faster, and reduces labor costs. Large-scale hair care manufacturing generally uses automated filling equipment to instantly fill bottles with pre-set quantities. These machines deliver consistent fill weights across thousands of units. That consistency protects your brand reputation and keeps your operation compliant with industry standards. When you invest in the right shampoo and conditioner filling equipment, you solve these challenges before they reach your production floor.

Types of Shampoo and Conditioner Filling Machines

Image Source: pexels

You must match the filling machine to the product. Shampoo and conditioner behave differently at filling temperature. A thick conditioner needs positive displacement. A thin shampoo needs flow control. The main machine families are piston fillers, gear pump fillers, and flow meter fillers.

Four machine types dominate the market. Servo piston fillers handle high-viscosity products. Gear pump fillers manage oils and corrosive materials. Flow meter fillers suit low-foaming liquids. Corrosion-resistant gravity fillers work with emulsions and water-based products.

Piston Fillers for Thick Formulas

Piston fillers handle high-viscosity products best. They use servo-driven pistons to draw a set volume of product into a cylinder. Then they push it into the bottle. This positive displacement action gives you repeatable fill weights even when the formula is thick like honey.

The servo piston filler offers high accuracy. These machines achieve fill tolerances of ±0.5% or tighter. Fill volume ranges from 1 ml to 5000 ml depending on the machine family. That means you can run small 50 ml bottles or large 1 liter bottles on the same filler family.

These machines excel at handling frequent product changeovers. You can switch between formulas without lengthy adjustments. The servo drive lets you adjust the piston stroke in tiny increments. Cleaning takes less time because the contact parts disconnect easily. Many personal care manufacturers choose piston fillers for shampoo and conditioner products.

A typical automatic shampoo filling line follows a clear sequence: bottle infeeding, piston pump filling, capping, labeling, and outfeeding. The piston pump maintains accuracy and repeatability across continuous operation. This matters when you run thousands of bottles per shift.

Gear Pump vs. Flow Meter Fillers

You get two main choices beyond pistons: gear pump fillers and flow meter fillers. Both serve medium and low viscosity products, but they work differently.

Gear pump fillers belong to the positive displacement family. They use rotating gears to expel a predetermined volume of product. This makes them rugged and suitable for medium to high viscosity liquids. They handle viscous creams and thicker shampoos well. The mechanical action gives precise volumetric control.

Flow meter fillers use electromagnetic or turbine sensors. These sensors measure the actual volume of liquid passing through the nozzle. They track every milliliter in real time. This approach delivers excellent speed and precision when the liquid has stable viscosity. Flow meter fillers suit thin, free-flowing liquids like water-based conditioners and emulsions. They achieve high accuracy of ±0.3–0.5%.

Medium viscosity liquids like many shampoo formulas need controlled flow to prevent dripping and ensure accurate dosing. Piston and peristaltic pump fillers handle this well. Gear pump fillers also manage these products without damaging the formula.

Two other machine types complete the picture. Gravity fillers work for thin, water-like liquids. They rely on gravity to transfer product into the bottle. Overflow fillers handle foamy products. They fill from the bottom up to reduce foam and overflow.

The best starting point is to define your product first. Consider how your shampoo behaves at filling temperature. A formula pumps differently at 25°C than at 50°C. Product samples are essential. Two products with the same name can have different viscosity, foam behavior, and temperature sensitivity. Confirm your machine selection using real samples under actual operating conditions.

Many food, cosmetic and chemical products become thicker or thinner under different conditions. Select the filling system with real operating conditions in mind.

Key Features That Drive Performance

Accuracy, Speed, and Hygiene

Fill accuracy determines your product weight consistency and waste levels. Servo-driven piston fillers achieve ±0.5% accuracy, while gear pump and peristaltic fillers reach ±0.5–1.0%. Gravity overflow fillers deliver ±1.0–1.5%. You should validate accuracy under actual production conditions, not just lab settings.

Speed separates semi-automatic from fully automatic equipment. Semi-automatic machines fill 20–40 bottles per minute. Automatic rotary lines reach 100–200 per minute. Your choice depends on your output targets and labor budget.

Hygiene compliance protects your brand. Product-contact parts should use 304 or 316L stainless steel with a surface finish of Ra ≤ 0.8 μm. Seals should be food-grade silicone or PTFE. These specifications support ISO 22716 cleaning validation. Closed hoppers minimize contamination from dust and airborne particles. CE, ISO, and GMP certifications help prevent contamination and protect product safety.

Flexibility and Easy Cleaning

Changeover speed affects your uptime. Quick-change components and tool-less adjustments let you complete product changeovers within 15–30 minutes. You can switch between shampoo and conditioner formulas without lengthy downtime.

A clean-in-place system automates the cleaning process. High-pressure spray systems achieve 3–5 bar cleaning pressure for thorough residue removal. Automated cleaning cycles complete full system sanitization within 45–60 minutes using validated protocols. A fully integrated stationary 360º collecting tray CIP system reduces downtime between product changeovers or at the end of a production shift.

Digital recipe management and one-key volume adjustment minimize downtime when changing product specifications. Modular design across the packaging line enables flexible production and rapid switching between different volumes and container types. Quick changeover mechanisms combined with servo control and customized fixtures allow fast adaptation to different volumes, unconventional bottles, and special closures such as mousse pumps. A user-friendly interactive H.M.I. touch panel supports the entire changeover process.

Matching Equipment to Containers

Shampoo and conditioner containers come in many shapes, sizes, and materials. Your filling machine must handle every one without tipping, splashing, or short-filling. A stable round bottle behaves one way; a flat trigger-spray bottle behaves differently. Evaluate the liquid and container together before comparing models.

Container Shape and Material

Common shapes include Cosmo round, Boston round, cylinder, oval, and square. Travel-size bottles run 1 to 3 ounces; 250 ml is a common base volume for a hair care line. Larger refill bottles reach 1 liter. Shape decides how bottles move on the conveyor. Narrow or flat designs need stronger rails, wider contact surfaces, or side belts.

HDPE is durable and opaque; PET gives clarity; glass adds premium feel and UV protection but raises breakage risk. Your machine must adjust gripping pressure and torque for each material.

Send physical bottle samples, not drawings. Suppliers verify nozzle height, guide-rail contact, conveyor spacing, and changeover needs. Include closure samples too. Pump heads carry long dip tubes, trigger sprayers are bulky, and screw caps need defined torque. Plan filling and capping together.

Nozzle and Conveyor Compatibility

Nozzle design depends on bottle opening size and viscosity. A thick conditioner tends to string and leave residue, so anti-drip or shut-off nozzles improve fill-weight consistency. A foaming shampoo needs a lowered or diving nozzle with controlled speed and segmented filling to avoid foam errors.

Your conveyor keeps bottles aligned. Adjustable rails, star wheels, and timing screws stabilize movement. Feeding can be manual, through a rotary table, or from an upstream system. Choose the method based on container stability and automation level.

Balance the whole line. Filling, capping, and labeling must run at similar speeds; the slowest station caps output. Select filling heads and conveyor speed from your bottles-per-hour target. Container compatibility drives changeover time and overall line efficiency, so confirm every detail with real samples before you order.

Automatic vs. Semi-Automatic Equipment

Semi-Automatic Use Cases

Semi-automatic filling suits small-scale production, lab work, and startup operations. These machines combine manual control with automated filling functions. You monitor quality while the machine handles dosing. You can adjust the fill amount for each bottle, which proves essential when testing new formulas and producing sample batches.

Semi-automatic equipment fits several scenarios well. Cosmetic startups with limited product lines benefit from the lower investment. Labs conducting R&D for new formulations need the flexibility to test different viscosities. Small businesses preparing samples for market testing require quick turnaround between batches. Entrepreneurs testing batch consistency before scaling production find these machines easy to clean and maintain. For shampoo and conditioner production at low volumes, a semi-automatic piston filler with an anti-drip nozzle and adjustable speed gives you control without the cost of full automation.

Scaling to Fully Automatic

Fully automatic lines serve large-scale hair care manufacturing. These systems deliver higher output, lower labor costs, and consistent quality across every bottle. Automatic cosmetic filling machines operate continuously with minimal downtime. Depending on configuration, they produce thousands of products per hour.

The cost difference matters. Semi-automatic capping machines carry lower upfront costs but slower production rates and higher labor expenses. Fully automatic systems demand a higher initial investment but reduce labor needs significantly. Operators mainly supervise rather than perform filling tasks. Labor savings often offset the initial cost over time.

You can retrofit semi-automatic models with conveyors, capping modules, and labeling systems as your volume grows. Upgrade when your production volume exceeds manual capacity, labor costs rise, or compliance requirements demand tighter documentation. A slightly more flexible machine now prevents replacement costs later as your product lines expand.

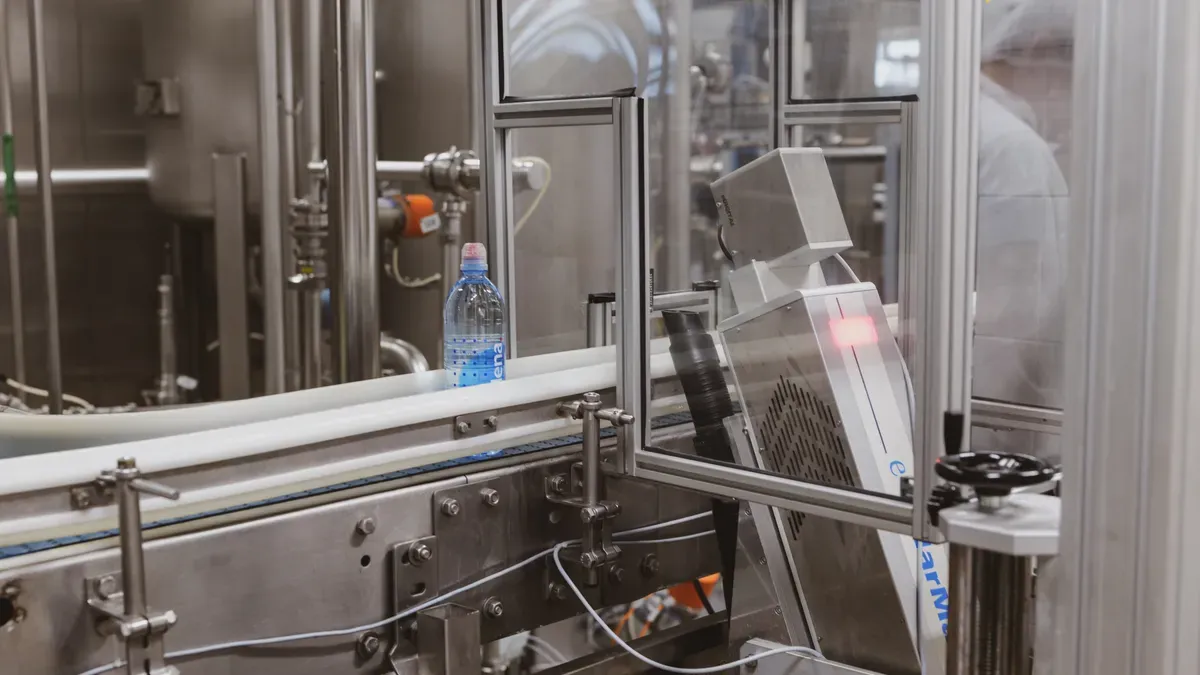

Configuring a Shampoo and Conditioner Line

Image Source: pexels

Unscrambling to Capping

A complete shampoo and conditioner line moves bottles through a fixed sequence. Each station performs one task and passes the container to the next. The order matters because upstream delays cascade downstream.

1. Bottle unscrambler – automatically arranges and supplies bottles.

2. Filling machine – a 4-head tracking filler doses the product.

3. Caps feeder – sorts and supplies caps.

4. Capping machine – applies and tightens caps to prevent leakage.

5. Inkjet printer – prints batch codes and expiry dates.

6. Labeling machine – applies labels precisely.

7. Shrink-sleeve machine – applies shrink sleeves for a finished appearance.

You can add or remove stations based on your packaging format. A pump bottle needs a different capping head than a screw cap. The unscrambler sets the pace for everything after it. If bottles arrive misaligned, the filler misses doses and the capper cross-threads. Keep each station synchronized to your target bottles per minute.

Integrating Mixing and Packaging

Mixing tanks and homogenizers feed the filling machine through transfer pumps and piping. The homogenizer breaks down droplets and creates a stable emulsion. Your transfer pump must move the finished batch without shearing the formula or introducing air. A well-planned layout keeps the mixing area close to the filling line. Short transfer distances reduce product loss and cleaning effort.

Jaywin Machinery provides customized equipment configurations, production line layouts, and on-site installation. Their engineers review your floor plan and product flow before recommending a setup. A well-configured line reduces bottlenecks and ensures smooth product flow from mixing to finished goods. You avoid the common mistake of buying a fast filler that outpaces your capping station. Every station should match your real output target.

Jaywin Machinery Filling Solutions

Jaywin Machinery, founded in 2004 in Guangzhou, China, is a leading cosmetics machinery manufacturer. The company builds complete production lines for hair care and color cosmetics. Its service process covers consultation, proposal design, manufacturing, logistics, on-site installation, operator training, and after-sales support. You receive a working line, not just a machine.

Dual-Head Rotary Quantitative Filling Machine

For high-viscosity liquids and pastes, the Dual-Head Rotary Quantitative Filling Machine delivers precision and steady throughput. Dual servo-driven piston pumps draw product into cylinders and discharge it into bottles. This design handles thick conditioners without dripping or stringing and keeps fill weights consistent across long runs.

The rotary system indexes containers automatically, reducing operator strain. A 7-inch touchscreen PLC stores parameters for more than 50 formulations, so you can switch between products with one tap. Quick-disconnect contact parts cut cleaning time to about 15 minutes between changeovers. All product-contact surfaces use SUS304 stainless steel, and the closed hopper keeps contaminants away from the formula.

The machine fits mid-to-large-scale shampoo and conditioner production lines where accuracy directly protects product cost and brand reputation.

Cosmetic Mascara Piston Quantitative Filling Machine

The Cosmetic Mascara Piston Quantitative Filling Machine handles small-volume cosmetics that demand exact dosing. It fills mascara, lip gloss, and foundation liquids with the same consistency. A piston-controlled mechanism draws product into a measuring chamber, then a pressurized stroke pushes it into the bottle. This approach prevents the air pockets that cause under-filled containers.

The machine accepts 1–20ml per fill with ±0.1ML accuracy. Production reaches 1200–1800 units per hour. An 18L barrel with 6Kg/CM² pressure resistance keeps dense formulas flowing smoothly. SUS304 stainless steel construction simplifies cleaning and meets hygiene standards for repeated cosmetic use.

Jaywin also offers the Automatic Loose Powder Filling Machine, Lipstick Filling Machine, and Automatic Rotary Table Mascara Filling Machine, all built with SUS304 stainless steel. Each machine integrates with upstream mixing tanks and downstream capping stations to form a complete line.

Selection Checklist for Manufacturers

Capacity and Certifications

Match machine output to your current and projected production volume. Map your order patterns, SKU mix, labor, and cash flow against one-year and three-year growth scenarios. Sustained high purchase-order volume favors automatic fillers. A long tail of small batches favors semi-automatic flexibility. High-speed packaging machines are recommended when you process more than 50,000–100,000 packages per day, run multiple shifts, or plan to scale. Lower-volume operations should choose standard-speed equipment.

Product characteristics drive every machine decision. Measure viscosity at 5°C, 25°C, and 40°C to predict seasonal variation. Run a pump discharge consistency test across 20 cycles. Check for air entrapment or backflow in the pump mechanism. Conduct packaging stability for 30 days to assess valve resistance. Document all findings in your batch quality report and packaging compatibility file. For shampoo and conditioner formulas, confirm foaming tendency, temperature sensitivity, and ingredient compatibility with pump plastic resins.

Certifications protect your market access. Review these standards before you order:

GMP-certified facilities enforce strict hygiene protocols and batch traceability. ISO 22716 methods keep each formula consistent and traceable. Labels must meet updated FDA regulations, including MoCRA, for the U.S. and EU cosmetic directives abroad.

Supplier Support and Scalability

Vet your supplier for installation, training, maintenance, and spare parts. Site readiness requirements include stable power (220V–480V depending on model), clean dry compressed air for pneumatic parts, and sufficient floor space for operators and maintenance access. A structured operator training checklist should cover machine start/stop, simple troubleshooting for foaming, dripping, or wrong fills, sanitation, safety protocols, and changeover procedures for different bottle sizes or formulas. On-site training and video modules build team confidence quickly.

A preventive maintenance schedule extends machine life. Daily tasks include cleaning nozzles, checking leaks and wear, and inspecting sensors and seals. Weekly tasks include greasing moving parts and inspecting hoses and fittings. Every three months, perform deep cleaning, calibration tests, and replacement of worn parts. Request a full parts catalog covering air fittings, belts, capper parts, conveyor parts, electrical parts, filler parts, pneumatic valves, tubing, and turntable parts.

Scalability determines your long-term cost. You can upgrade from semi-automatic to fully automatic, add filling heads, or integrate new packaging formats. SKU expansion adapts through change parts on the same base platform. Frequent changeovers and diverse containers benefit from operator-controlled semi-automatic flexibility. Leading indicators for scaling up include routine overtime, seasonal spikes overwhelming the line, giveaway from overfills, changeover time delays, downstream bottlenecks, retailer documentation demands, and turning down orders. These signals show that demand has exceeded current filler capacity. Red flags when vetting suppliers include unsubstantiated promises on filling accuracy or speed, poor technical support, lack of CIP/SIP compatibility for GMP hygiene, hidden costs for installation or training, and rigid designs that cannot accommodate changes in bottle shape or formula.

Real-World Applications

Small-Batch Shampoo Production

A startup making natural shampoo faces a common problem. The formula is thick, the batch sizes are small, and the budget is tight. The company chooses a semi-automatic piston filler with a 20L hopper and manual capping. This setup produces 500 bottles per day. The operator loads bottles by hand, the piston pump doses the product, and a manual capper seals each bottle. The machine handles the viscous formula without dripping. Changeover between shampoo and conditioner takes minutes, not hours. The startup avoids the cost of a full automatic line while keeping fill weights consistent. As demand grows, the same machine can accept a conveyor and an automatic capping module. This path lets the business scale without replacing its core equipment.

High-Volume Conditioner Line

A major hair care brand runs a different operation. Its conditioner sells in large volumes, and the line must fill 200 bottles per minute. The company installs a fully automatic rotary filling line with 8 heads. The line integrates Jaywin's Dual-Head Rotary Quantitative Filling Machine for precision. Servo-driven pistons hold fill accuracy at ±0.1ML across every bottle. The rotary system indexes containers automatically, and the capping and labeling stations keep pace. Labor needs drop to a few supervisors. Fill weights stay consistent from the first bottle to the last. The line meets GMP and ISO hygiene standards for international markets.

Jaywin Machinery serves both domestic and international cosmetics manufacturers with customized solutions. A startup and a global brand can both find a configuration that fits their output, formula, and compliance needs. The measurable benefits are clear: reduced labor, consistent fill weights, and compliance with international standards. Whether you fill 500 bottles a day or 200 bottles a minute, the right equipment protects your product and your brand.

You now have five criteria to guide your decision: viscosity, container type, output, compliance, and automation level. Review your shampoo and conditioner production against the checklist above. Measure your formula at real filling temperatures. Confirm your bottle samples on the conveyor. Match machine speed to your capping station. Verify certifications before you commit.

When you need a tailored assessment, consult Jaywin Machinery for a customized filling line evaluation. Their engineers review your product, containers, and output targets. Visit the service process page to start the conversation. The right equipment matches your business goals, protects your brand, and scales with your growth.

FAQ

Which filler works best for thick conditioner formulas?

A servo-driven piston filler handles thick conditioners best. It draws a set volume into a cylinder and pushes it into the bottle. This positive displacement action keeps fill weights repeatable even when the formula moves slowly. You get consistent dosing without dripping or stringing.

How do you prevent foaming during shampoo filling?

Foaming starts when you pump surfactant-heavy shampoo too fast. Use a diving nozzle and lower the fill speed. Segmented filling also helps. Fill part of the volume, pause, then finish. This approach reduces air bubbles and keeps your fill weights accurate.

What fill accuracy can you expect from automatic equipment?

Accuracy depends on the machine type. Servo-driven piston fillers reach ±0.5%. Gear pump and peristaltic fillers reach ±0.5–1.0%. Gravity overflow fillers deliver ±1.0–1.5%. Jaywin's Dual-Head Rotary Quantitative Filling Machine achieves ±0.1ML for small-volume cosmetic filling.

When should you upgrade from semi-automatic to fully automatic?

Upgrade when your volume exceeds manual capacity, labor costs rise, or compliance demands tighter documentation. Routine overtime, seasonal spikes, and changeover delays also signal that demand has outgrown your current filler. You can retrofit semi-automatic models with conveyors and capping modules first.

Can one machine handle both shampoo and conditioner?

Yes, if you choose a flexible filler with adjustable fill volumes and recipe storage. Quick-disconnect contact parts let you switch formulas in about 15 minutes. A 7-inch touchscreen PLC stores parameters for more than 50 formulations, so changeover takes one tap.
