Main technical parameters:
Power voltage | 220V/50Hz |
Installation requirements | 220V Power voltage and air source |
Power | 100W |
Cylinder | TGC50*75-YXH007 |
Air supply | 0.3-0.6Mpa |
Barrel volume | 18L |
Barrel pressure resistance | 6Kg/CM² |
Filling range | 1~20ml |
Filling accuracy | ±0.1ML |
Production capacity | 1200~1800/hour |
Body material | Stainless steel (SUS304) |
Net weight<kg> | 80kg |
External dimensions (L*W*H) | 410*770*1550mm |
Usage and Function:

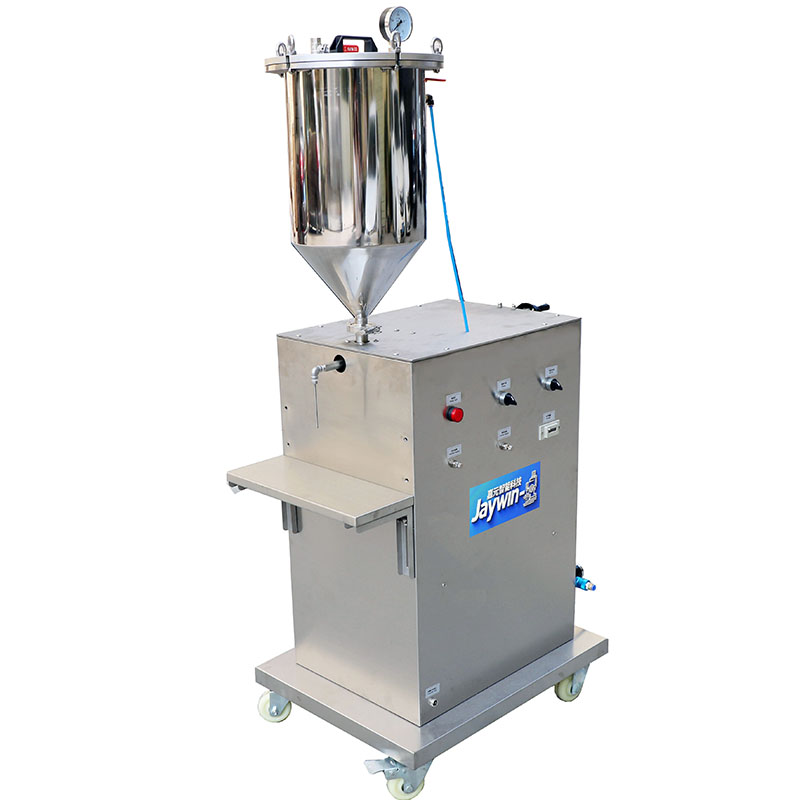

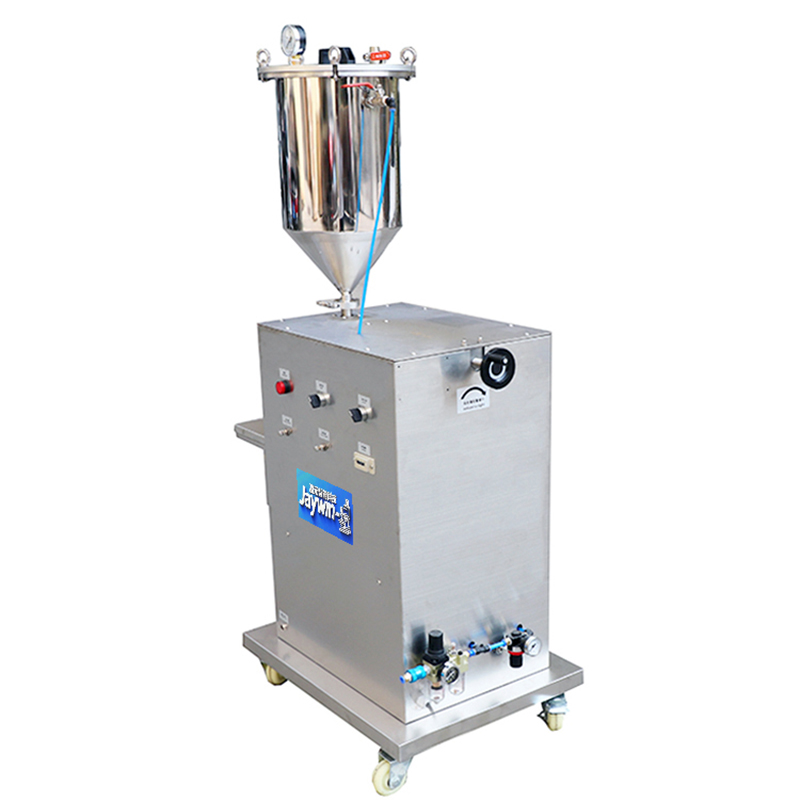

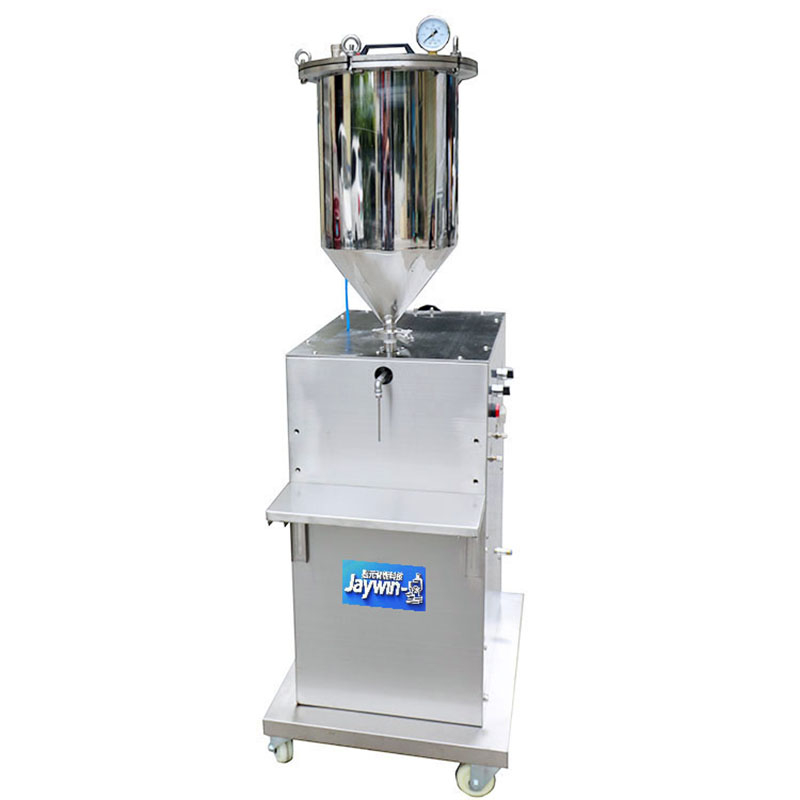

This product is primarily used for quantitative filling of cosmetic ingredients such as hyaluronic acid injections, mascara, lip gloss, and foundation liquids (liquid/gel). The pressurized filling process within the material tank ensures uniform force distribution during filling while enhancing the fluidity of the materials. The piston-controlled filling mechanism allows precise capacity setting with minimal error margins, meeting customer requirements. The machine features simple operation and easy cleaning, making it highly practical and cost-effective for diverse product types and varied user needs.
