Main technical parameters:
Model | SLJF-2J15KG (Single shaft 15 kg) | SLJF-4J25KG (Three-side shaft 25 kg) | SLJF-4J50KG (Three-side shaft 50 kg) |
Power supply | Three phase 380V 50HZ | Three phase 380V 50HZ | Three phase 380V 50HZ |
Machine installation requirements | 380V Power supply (10 mm², 5-core cable), air source, circulating water | 380V Power supply (10 mm²,5-core cable), air source, circulating water | 380V Power supply (10 mm²,5-core cable), air source, circulating water |
Inverter brand | TAIDA | TAIDA | TAIDA |
Motor brand | Siemens | Siemens | Siemens |
Total Power | 13.5KW | 21KW | 45KW |
Main motor power | 11KW | 15KW | 37KW |
Main motor speed | 2500R/MIN (variable frequency speed control) | 2500R/MIN (variable frequency speed control) | 2500R/MIN (variable frequency speed control) |
Side motor power | 1.5kw*1 | 1.5kw*3 | 2.2kw*3 |
Side motor speed | 2500 RPM | 2500 rpm (variable frequency speed control) | 2500 rpm (variable frequency speed control) |
Open cover cylinder | AirTAC MA40*250 | AirTAC MA40*250 | AirTAC MA40*250 |
Powder Out cylinder | AirTAC SC50*250 | AirTAC SC50*250 | AirTAC SC50*250 |
Barrel size volume | 45cm (d) *23cm (h) is about equal to Aboat79L | 55cm (d) * 55cm (h) is about 130L | 200L |
Material | Stainless steel (SUS304) | Stainless steel (SUS304) | Stainless steel (SUS304) |
Production capacity | 5-15kg/ barrel | 10-25kg/ barrel | 20-50kg/ barrel |
Dimension (L*W*H) | 1550*1150*1300MM | 1730*1520*1400MM | 150*170*160CM |
Net weight | 450kg | 500kg | 1500kg |
Usage & Functions:

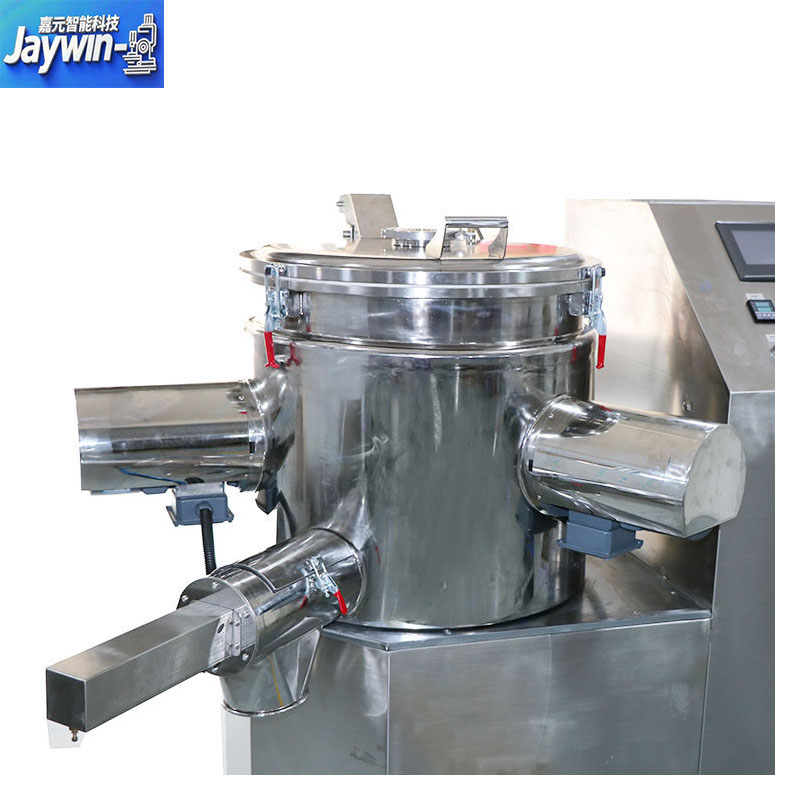

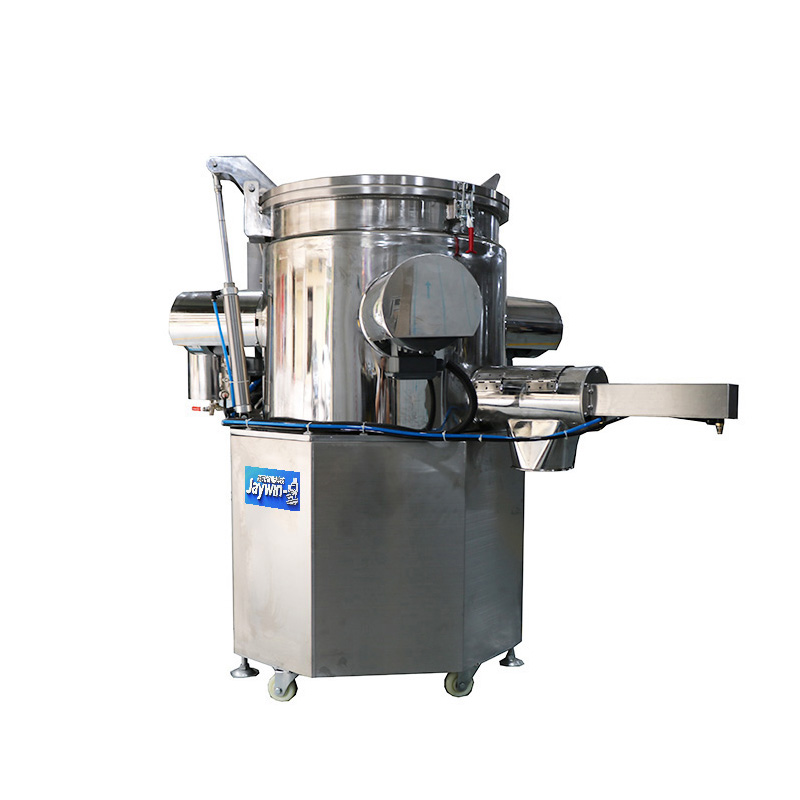

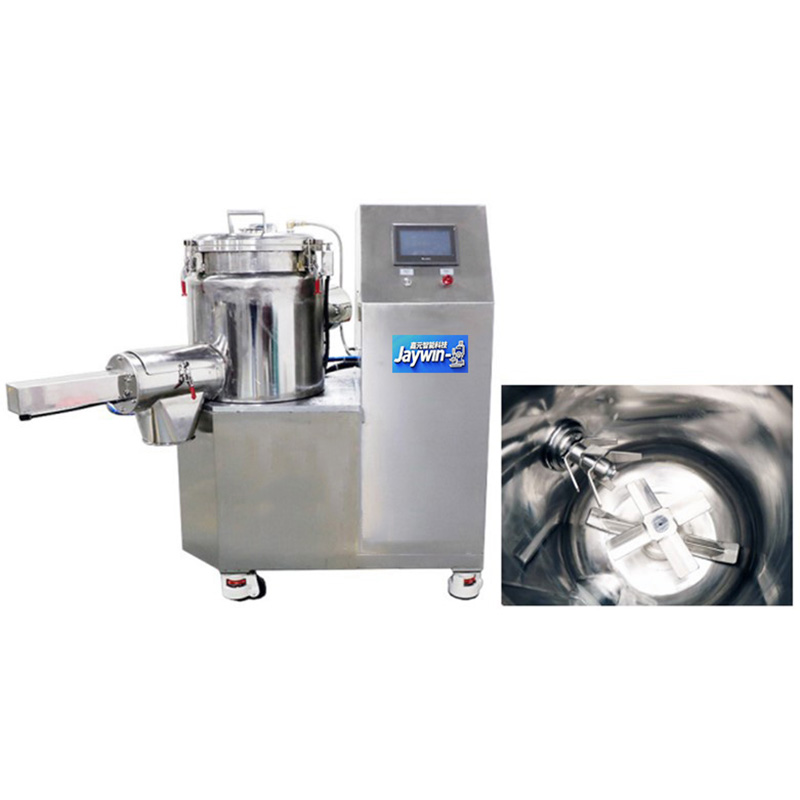

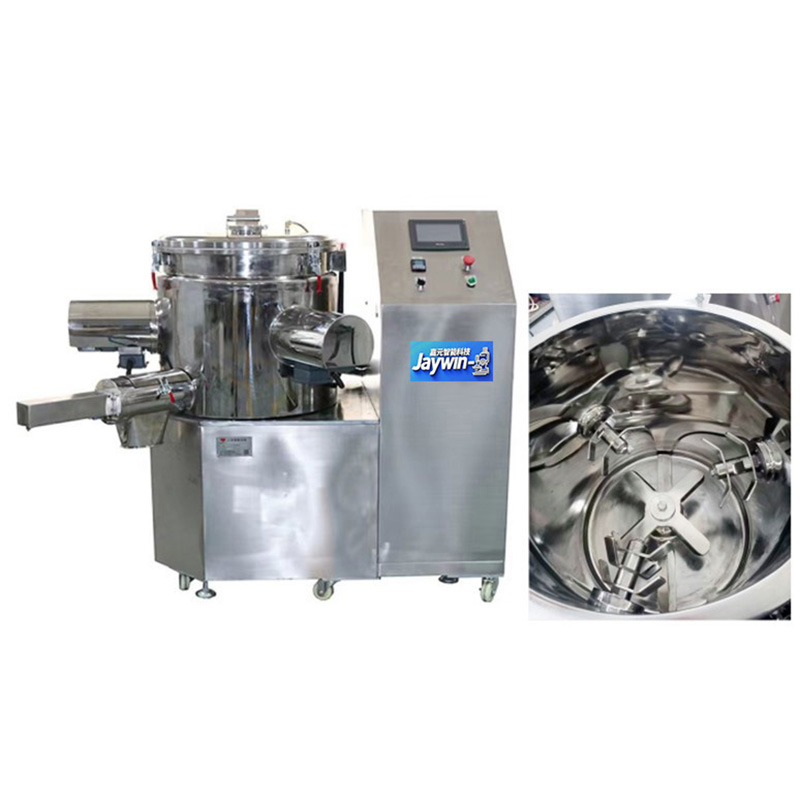

This equipment is designed for use in cosmetics, pharmaceuticals, food processing, chemical industries, and dye production. Featuring dual agitator motors that operate from different angles at the bottom and sides of the material tank, it efficiently mixes raw materials through crushing, shearing, and collision agitation. It serves as an ideal production system for semi-finished ingredients like premium powder compacts, blushes, and eyeshadows. Constructed with stainless steel SUS304, the machine incorporates an automatic oil spraying mechanism that ensures thorough blending of powders and oils through atomized droplets. Its water-cooled system prevents overheating during high-speed operation, while a cylinder-operated powder discharge mechanism simplifies the process for user-friendly handling.
