Filling Accuracy Key Components—including precision pumps, nozzles, and sensors—enable calibration through gravimetric and volumetric methods. These components are vital for lipstick, concealer, and nail polish, safeguarding product quality, controlling costs, and ensuring regulatory compliance. Each product poses distinct challenges: lipstick needs heat control for waxy formulas, concealer requires anti-drip valves for smooth flow, and nail polish demands corrosion-resistant pumps for solvent-based ingredients. A cosmetic concealer filling machine enhances filling accuracy by integrating these key components and calibration techniques, boosting production efficiency, flexibility, and material control. Jaywin Machinery delivers solutions tailored to these specific needs by prioritizing Filling Accuracy Key Components.
Precision pumps and heated nozzles ensure accurate lipstick fills.
Anti-drip valves and sensors keep concealer filling clean and precise.
Corrosion-resistant pumps and agitation systems handle nail polish safely.
Calibration methods like gravimetric and volumetric verify filling accuracy.
Routine checks and quick changeovers maintain consistent filling performance.
Jaywin Machinery builds its Lipstick Filling Machine and 12-Hole Lipstick Filling Machine around the same principle: control the material, control the dose. These machines combine precision pumps, heated hoppers, and anti-drip nozzles to deliver consistent fills for waxy, high-viscosity formulas.
The servo motor on Jaywin's lipstick filler adjusts stroke length in fine increments. That fine adjustment lets you dial in fill volumes with remarkable repeatability. The 12-hole model goes further with 12 independent piston pumps. Each pump, barrel, and nozzle has its own digital control, so one pump's drift never affects the others. This isolated setup prevents color mixing between formulas and delivers fill accuracy within ±0.05g to ±0.1ml. Servo piston filling machines across lipgloss, mascara, and hot-fill lipstick applications typically hold ±0.1g, so Jaywin's tighter tolerance gives you a real production edge.
Heated nozzles keep lipstick formulations at 100°C–150°C. At that temperature, viscosity drops and the material flows without bubbles. Controlled heating up to 140°C–150°C stabilizes volumetric discharge rates, which directly improves filling accuracy. The relationship is simple: temperature drives viscosity, viscosity drives flowability, and flowability drives filling performance.
Heated hoppers maintain fluidity for high-viscosity formulas like matte lipstick. Interlayer heating of the barrel ensures raw materials heat evenly, and the pump and nozzle heat independently. There is no heating dead angle. This matters because cold filling versus hot filling changes product viscosity, filling accuracy, appearance, settling, air entrapment, and final product quality. A heated hopper keeps viscosity at the optimal point and improves flow stability, provided your formulation allows heating.
Liftable nozzles prevent splashing during the fill cycle. The nozzle rises as the mold fills, so material enters smoothly instead of dropping from a height. An anti-drip design stops stringing between cycles. Together, these features protect your fill weight consistency and keep your production area clean.
Jaywin constructs all product-contact parts from SUS316L stainless steel. This material resists corrosion, withstands repeated heating cycles, and meets FDA and EU regulations. The GMP-compliant design includes a transparent lid for material monitoring and a quick-release structure for easy cleaning. These Filling Accuracy Key Components work together to reduce waste and guarantee identical product quality on every run. When you evaluate lipstick filling equipment, look for these Filling Accuracy Key Components first.
Jaywin Machinery's Servo piston three-color cosmetic concealer heating filling machine and Cosmetic mascara piston quantitative filling machine show how the right Filling Accuracy Key Components adapt to thinner, more temperature-sensitive formulas.
Servo piston filling gives you precise volume control through controlled displacement. The machine fills 2–14 ml with ±0.1 g accuracy. Retractable nozzles stop drips and stringing, even with sticky materials. This results in less residue and waste, directly minimizing quantitative errors in concealer filling.
The machines use anti-drip nozzles and retractable nozzle designs to stop drips and stringing, even with sticky materials. This results in less residue and waste, directly minimizing quantitative errors in concealer filling.
Separate digital temperature controls let you set exact heat levels for the nozzle, pump, and barrel. Double-layer material buckets use thermal oil to keep the material smooth and prevent sticking. This ensures consistent texture and quality, which reduces quantitative errors. Advanced sensors monitor fill volume and bottle position in real time. Automated correction eliminates over- or under-fill. A PLC and touch screen interface lets you fine-tune parameters for different formulas and switch products quickly.
Nail polish contains solvents that attack incompatible pump materials. Wear degrades dose consistency over time. Ceramic piston fillers resist corrosion and suit high-precision products. Stainless steel with polished contact parts provides another corrosion-resistant option, reducing contamination and material degradation that would distort dosing.
Agitation systems play an equally critical role. Proper shear and agitation deliver uniform color, stable suspension, and repeatable viscosity. These are prerequisites for consistent fill volumes. Vacuum processing removes entrained air, limiting bubbles that cause inaccurate or uneven fills. The Lifting double-head rotary lip gloss and mascara quantitative filling machine uses a piston-type quantitative valve and a negative pressure function to handle viscous materials. This design prevents gas explosions during filling and keeps your fill weights stable.

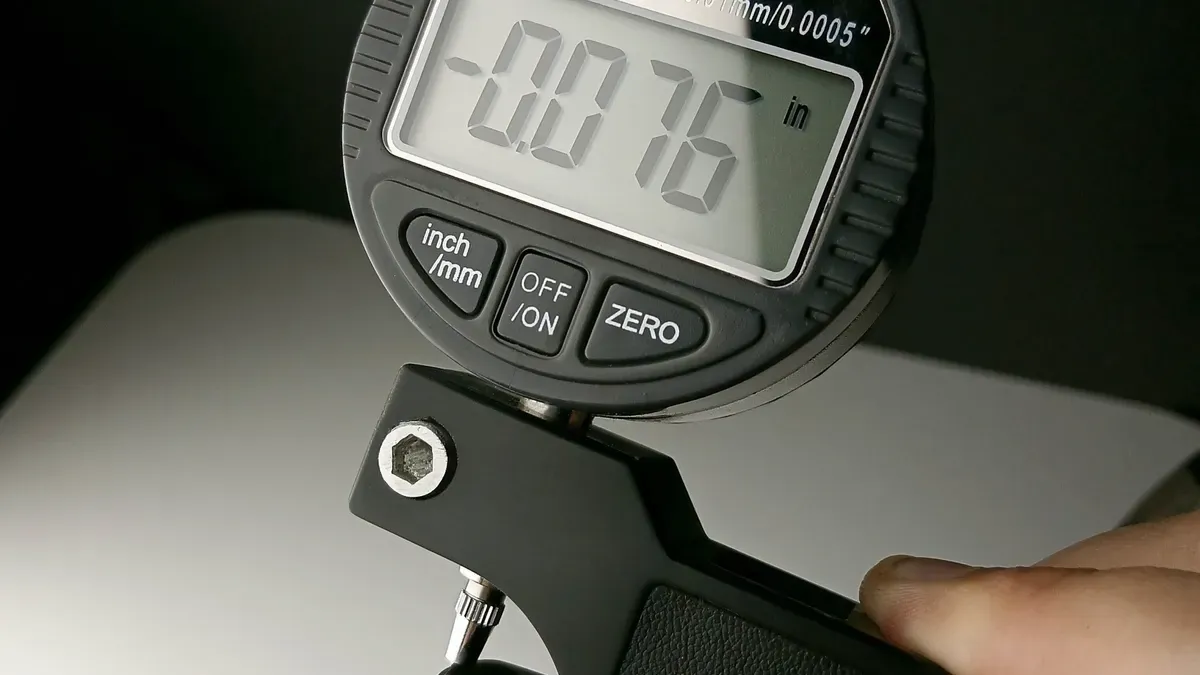

Image Source: pexels
Calibration turns your Filling Accuracy Key Components into a verified system. You cannot trust a pump, nozzle, or sensor until you prove its output against a known standard. Two primary methods exist: gravimetric calibration and volumetric calibration.
Gravimetric calibration verifies fill weight. You weigh each sample on a certified scale and compare the result to your target. This method works for lipstick, concealer, and nail polish because it accounts for density differences between formulas. Volumetric calibration verifies fill volume instead. You measure the actual space the product occupies, often using a graduated cylinder or flow meter. Volumetric methods suit thin, consistent liquids. Gravimetric methods suit high-viscosity or temperature-sensitive materials where density shifts with heat.
A documented gravimetric validation program follows clear rules. Collect at least 30 samples per fill volume. Broader trials use 30 to 100 samples. Accept mean fills within ±1% for routine SKUs and ±0.5% for high-quality SKUs. A 40 ml fill at ±0.5% allows only ±0.2 ml of variation. Maintain constant temperature within ±1–2 °C to reduce density and viscosity shifts. Use calibrated reference weights and a certified laboratory-grade scale traceable to NIST or local standards. Record mean, standard deviation, and coefficient of variation. Aim for CV below 0.5% for liquid cosmetics. If foam causes high variance, revise your nozzle or two-stage fill profile.
Validation Element | Documented Requirement |
|---|---|
Sample size | n≥30 per fill volume |
Acceptance criteria | ±1% routine; ±0.5% high quality |
Calibration frequency | Daily zero check; weekly spot-check; quarterly full calibration |
Process capability target | CV <0.5% for liquid cosmetics |
Documentation | IQ/OQ/PQ protocols; retain records 1–5 years |
In-line calibration systems use sensors and PLC program control for real-time adjustments. A properly calibrated scale lets the PLC stop filling at the desired weight and reject products outside tolerance. Without calibration, small inaccuracies lead to overfilled or underfilled products, increased material waste, and higher reject rates.
PLC controls allow fine-tuning of fill timing, pump speed, and nozzle timing. Flow meters provide real-time volume measurement and automatically adjust pump speed or timing to compensate for viscosity, temperature, or pressure variations. Container presence sensors, fill level sensors, and checkweighers detect underfills or overfills and trigger an automatic reject mechanism. This removes non-conforming containers without stopping the line.
Reduced product giveaway: 0.3–1.5% of product value
Reduced rework and waste: 20–40% reduction
Improved fill-weight Cpk: from <1.0 to >1.67
Faster changeover via auto-calibration: 15–30 min saved per changeover
Jaywin Machinery's PLC-controlled filling machines apply these principles directly. The servo piston three-color concealer heating filling machine and the 12-hole lipstick filling machine both use PLC program control for precise parameter setting. You can store up to 50 formulas on the 12-hole model and switch products quickly. For temperature-sensitive concealers, separate digital temperature controls keep viscosity stable during the run. For high-viscosity nail polish, agitation and vacuum processing remove entrained air before the fill cycle. These features keep your in-line calibration accurate across every product change.
Your equipment only performs as well as your maintenance schedule allows. Consistent filling accuracy depends on disciplined routine checks and smart changeover procedures.
Daily nozzle alignment checks keep your fill pattern centered. A misaligned nozzle causes uneven fills and product buildup. Verify pump seals every 300 operating hours and replace them when compression set exceeds 15%. Monthly load cell verification with NIST-traceable weights maintains ±0.02% accuracy. Quarterly flow meter calibration holds ±0.5% repeatability.
These intervals matter because sensor drift and nozzle clogging cause fill volume deviations up to ±3.2% on fast-moving lines. The problem worsens over time. Facilities using automated calibration systems report roughly 30% fewer human errors during maintenance. Daily quick-checks with calibrated scales improved fill accuracy from ±4.1% to ±1.5% in documented cases. Quarterly full-system recalibration with traceable standards delivered a 12% reduction in annual product waste and 18% fewer customer complaints.
Match lubricant viscosity to operating temperature and load conditions. This practice reduced friction in conveyor chains and piston assemblies by approximately 34%. Schedule lubrication based on actual usage hours rather than calendar time. This approach maintains roughly half a percent consistency in fill cycles.
Changeover speed and accuracy go hand in hand. Modern filling machines reduce SKU changeover time by 40–70% when you combine modular equipment, recipe control, and SMED-based procedures. A mid-sized cosmetics line running 8 SKUs per day cut average changeover time from 30 minutes to 12 minutes after adopting a modular automated filler with recipe management and a CIP loop.
Jaywin Machinery's quick-release designs simplify hopper cleaning and nozzle replacement. The CIP system on the 12-hole lipstick filling machine completes a full cleaning cycle in about 20 minutes. Recipe libraries managed through the touchscreen interface let you load saved settings for each SKU in seconds. This reduces manual calibration errors and restores optimal fill volume, speed, and nozzle selection instantly.
Jaywin's service process supports sustained accuracy from day one. The team handles customer communication, proposal design, on-site installation, and customer training. After-sales support includes warranty services, routine maintenance follow-ups, and rapid fault response. This comprehensive approach keeps your filling accuracy stable across every production run.
You now know the critical components behind consistent fills. Lipstick relies on precision pumps and heated nozzles. Concealer depends on anti-drip valves and sensors. Nail polish needs corrosion-resistant pumps and agitation systems. Gravimetric, volumetric, and in-line calibration techniques verify your output across all three products. Routine checks, preventive maintenance, and proper changeover adjustments keep your Filling Accuracy Key Components performing at their best. Jaywin Machinery builds customized equipment and provides full support from installation to after-sales service. Investing in the right components and calibration practices reduces waste, ensures compliance, and improves production efficiency. Ready to upgrade your filling line? Contact Jaywin Machinery today for a tailored solution.
Gravimetric calibration works best. You weigh each sample on a certified scale. Keep temperature constant within ±1–2°C. Density changes with heat, so a steady environment improves your results.
Temperature shifts change viscosity. Pump seals wear after about 300 operating hours. Sensor drift also plays a role. Regular daily and weekly checks catch these issues before they affect production.
Use the CIP system for cleaning. Jaywin’s 12-hole machine completes a full cycle in about 20 minutes. Load saved recipes from the touchscreen. This restores your optimal settings instantly.
Yes, with the right components. You need different nozzles, pumps, and temperature controls for each product type. The machine must handle a wide range of viscosities.
