Parameter | Specification |
Power Supply | 3-phase 380V 50Hz |
Installation Requirement | 380V power supply |
Total Power | 2.8KW |
Suction Motor Power | 2.25KW |
Pressing Method | Top-down pressing |
PLC Brand | XINJE |
Touch Screen Brand | XINJE Touchwin |
Upper Cylinder Brand | Risheng Zhongsitong (HOBΦ100×150) |
Worktable Height | 880mm |
Maximum Pressure Range | 140KGF/CM⊃2; (approximately 10 tons) |
Pressing Cycles | 1-3 times (adjustable) |
Production Capacity | 2-3 molds/minute |
Mold Size | 110×170mm (accommodating 120-180mm) |
Dimension (L×W×H) | 1500×750×1550mm |
Net Weight | Approximately 280KG |

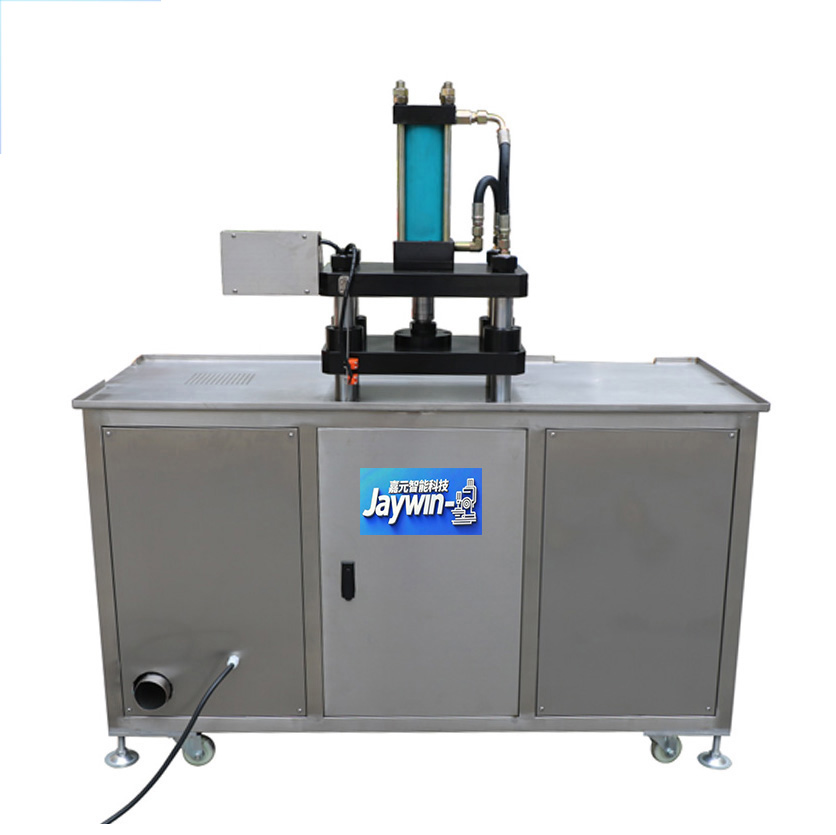

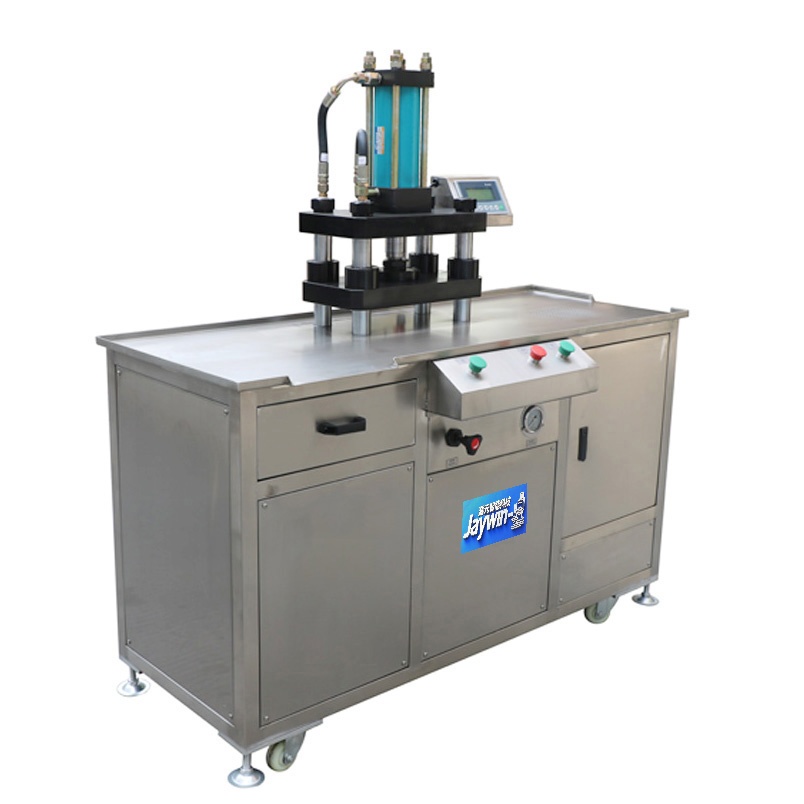

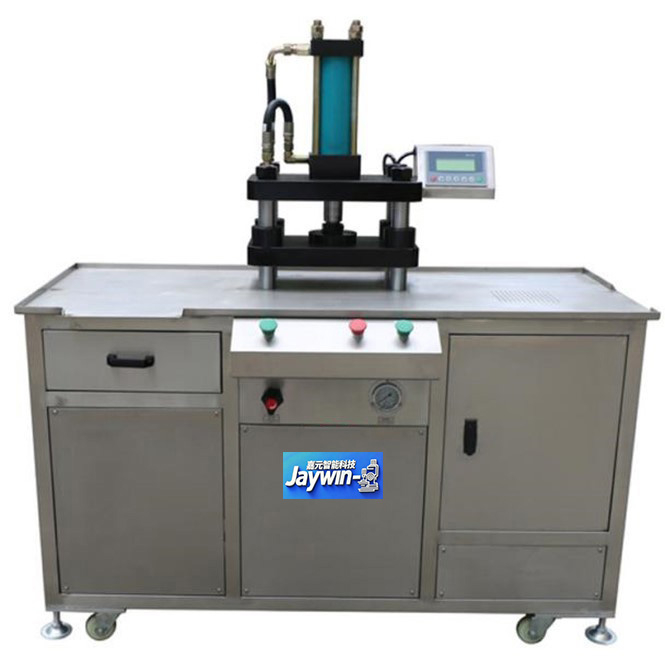

The Industrial Powder Press Machine is a specialized device for compacting cosmetic powders into pressed products like face powder, eyeshadow, and blush. Available in semi-automatic and fully automatic configurations, it combines adjustable pressure, rotary worktables, and vacuum powder collection to deliver consistent density and smooth surfaces. The fully automatic model (e.g., LR 190) features a modular design for smart factory integration, consuming only 5kw of power while achieving a capacity of 15 pcs per minute . Its robust construction ensures longevity even in 24/7 production environments.
Equipped with air cylinders or hydraulic systems, it offers pressure settings from 5 tons to 30 tons . Operators can program single or double pressing cycles—double pressing (first pre-press, then final press) eliminates internal air pockets, improving product hardness by 30%.
The semi-automatic model features a 4-station rotary table (loading, pressing, holding, discharging), while the fully automatic version has 8 stations for continuous operation. The table rotates at 12-15 rpm, supporting a maximum capacity of 2100 pcs per hour .
A touch screen PLC system stores up to 50 product recipes, allowing quick switching between eyeshadow palettes and powder compacts. A vacuum system collects excess powder during pressing, reducing waste by 15% and maintaining a dust-free workspace .
For loose powders with bulk density 0.8-1.2 g/cm³, the machine applies 10-15 tons of pressure to achieve a hardness of 60-80 Shore A, preventing powder fall-off during use .
Compatible with custom molds (up to 24 pans per palette). The rotary table’s precise indexing ensures alignment between pans, and the adjustable pressure accommodates different shades (e.g., 8 tons for shimmery formulas, 12 tons for matte) .
Ideal for cream-powder blush formulas. The heated pressing plate (optional) maintains 40℃, ensuring the cream component adheres to powder particles without melting .
A: Check two key factors: powder feeding uniformity and pressure distribution. Ensure the hopper’s auger feeder is set to 5-10 g/s (adjust via frequency converter) and calibrate the pressure sensor annually. For multi-pan molds, use the "zone pressure" function to adjust individual cavities .
A: The machine works with SUS304 stainless steel and aluminum molds. For intricate patterns (e.g., embossed logos), use hardened steel molds and reduce pressing speed by 2 rpm to preserve details .
A: Yes. The semi-automatic model has a minimum batch size of 50 pieces and a recipe recall function, making it ideal for R&D labs and boutique brands. The quick mold change (＜10 minutes) supports frequent product iterations .
