Parameter | 20L Model | 30L Model | 50L Model | 100L Model | 500L Model |
Barrel Volume | 20L | 30L | 50L | 100L | 500L |
Power Supply | 220V | 220V | 380V | 380V | 380V |
Stirring Motor Power | 60W | 60W | 200W | 750W | 1750W |
Stirring Speed | 0-90 r/min | 0-90 r/min | 0-90 r/min | 0-90 r/min | 0-30 r/min |
Dimension (L×W×H) | 615×610×1250mm | 660×700×1300mm | 770×700×1620mm | 830×760×1750mm | 1250×1250×1950mm |
Total Power | 2.2KW | 2.2KW | 4KW | 5KW | 12KW |
Temperature Range | 0-150℃ | 0-150℃ | 0-150℃ | 0-150℃ | 0-150℃ |
Net Weight | N/A | N/A | N/A | N/A | N/A |

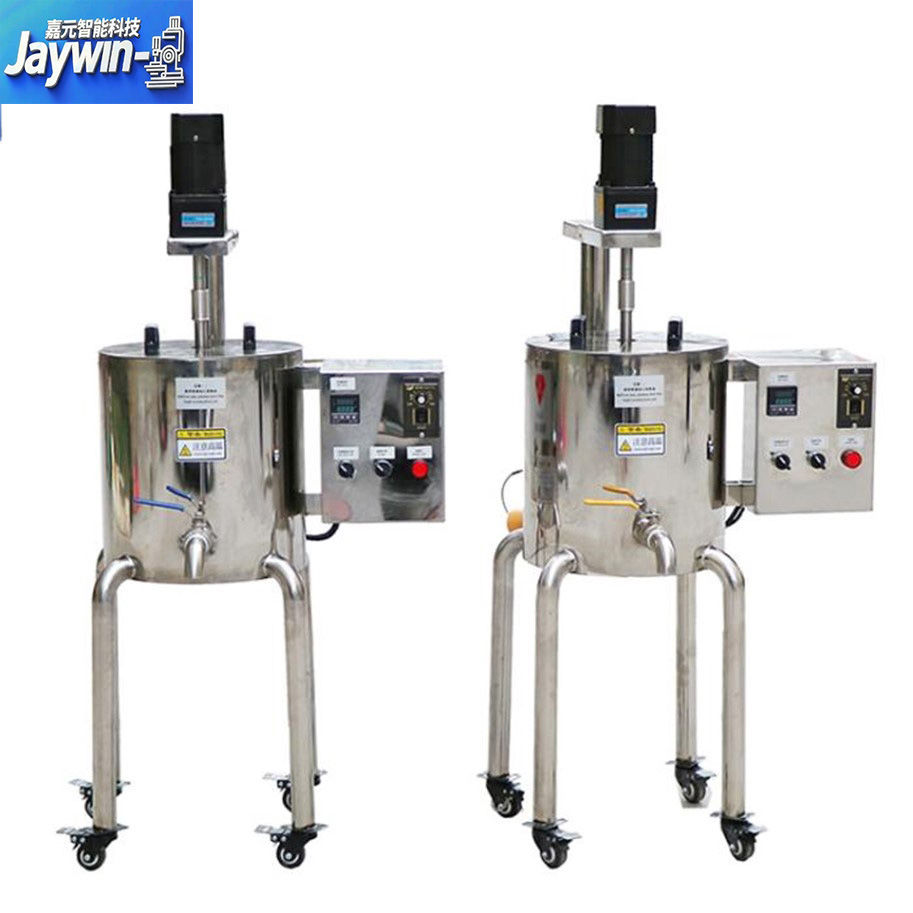

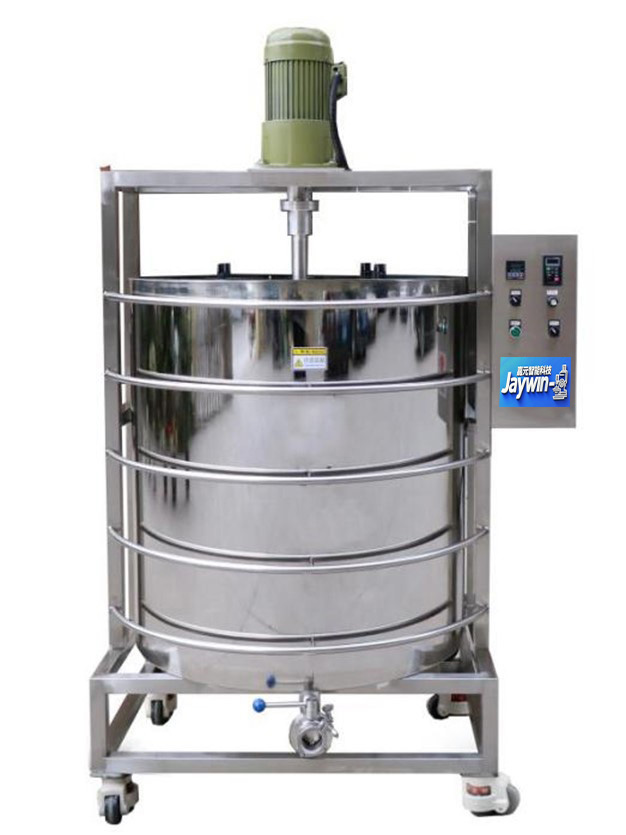

The Heating Mixing Tank is a core equipment in cosmetic powder production, integrating precise temperature control and high-efficiency blending functions. Designed for homogenizing powder raw materials with liquid binders or oils, it solves the pain points of uneven mixing and thermal sensitivity in traditional processes. Adopting a U-shaped trough structure with double helical ribbons, it ensures homogeneous blending of talc, mica, iron oxides, and other ingredients within 15 minutes or less , while the built-in heating system maintains stable temperatures for optimal material reactivity. Its SUS304 stainless steel construction meets GMP standards, making it ideal for high-end cosmetic manufacturing.
Equipped with a water-circulating heating system, the tank achieves a temperature range of 20-120℃ with an accuracy of ±0.5℃. This precision prevents thermal anaphylaxis of heat-sensitive ingredients like plant extracts, ensuring consistent product quality batch-to-batch . The heating power of 5.5kw enables rapid temperature rise, reducing pre-processing time by 30% compared to conventional mixers.
The outer ribbon drives materials toward the center, while the inner ribbon pushes them outward, creating bidirectional axial and radial flow. With adjustable mixing speeds of 10-60 rpm and a maximum capacity of 150kg per batch, it handles both low and high bulk density powders without agglomeration . A detachable scraper design ensures zero material residue on tank walls.
Featuring a PLC touch screen, operators can preset heating time, mixing speed, and rotation direction (CW/CCW). The tank can tilt 90 degrees for quick discharge, and the quick-release hopper allows tool-free disassembly, cutting cleaning time to less than 30 minutes .
Ideal for blending raw materials of face powder, blush, and eyeshadow. The uniform heat distribution ensures liquid binders fully coat powder particles, improving product adhesion and reducing powder fall-off .
Suitable for manufacturing cream-to-powder foundations. The tank’s temperature control maintains the mixture at 45-55℃, balancing liquidity for filling and subsequent solidification .
Used to disperse colorants like titanium dioxide and iron oxides into base powders, ensuring consistent hue across batches without color spots.
A: Yes. The tank’s sealed design with a pressure relief valve prevents leakage when mixing multi-phase ingredients. The ribbon structure ensures emulsification-like blending, even for ratios of oil to water up to 1:3 .
A: The system has a self-calibration function. Navigate to the "Maintenance" menu on the touch screen, select "Temp Calibration," and follow prompts to use a standard thermometer (accuracy ±0.1℃) for verification. Calibration is recommended every 3 months for precision.
A: Absolutely. The minimum working capacity is 10kg, and the variable speed control allows gentle mixing for small batches, making it suitable for laboratory R&D and boutique cosmetic brands .
