Basic parameters:
Power | 5KW | Power voltage | 220V/50HZ |
Air supply | 0.3-0.8Mpa | Production capacity | 60-140 pcs/min |
Bucket volume | 70L | Drum material | Stainless steel SUS304 |
Display screen | XINJE | PLC | XINJE |
Speed control motor | JSCC | Mixer motor | ToyoDenki |
Body size | 1200*3000*1900mm | ||

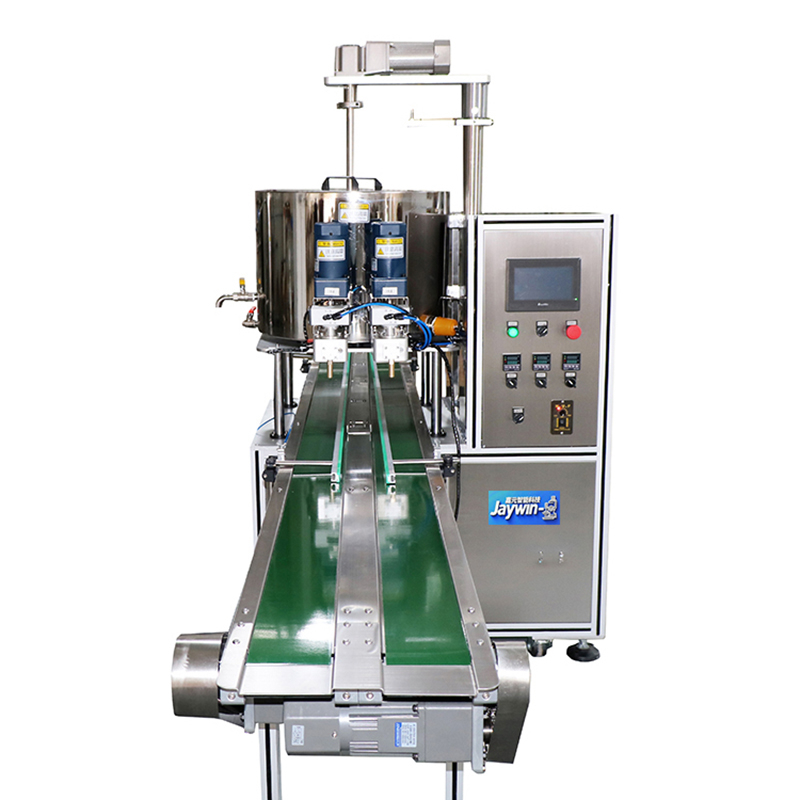

Machine features:

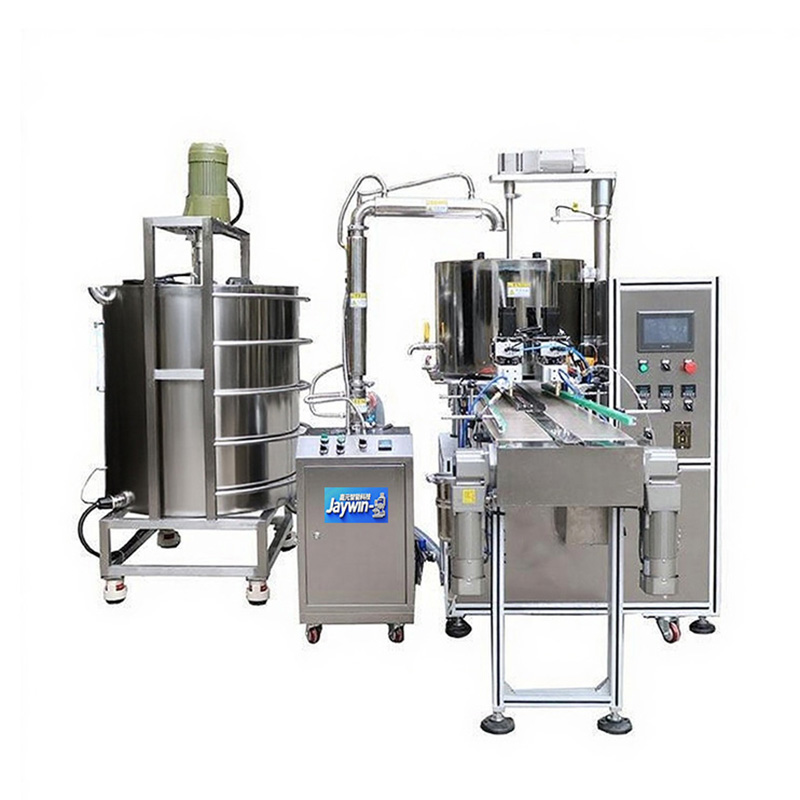

1. This production line is suitable for quantitative filling of all kinds of paste/liquid products, such as: cooling oil, Tiger balm, foundation cream, hair wax, basin-shaped lipstick, lip balm, eye shadow cream and other wide-mouth packaging that needs to be heated.
2. The double-layer material bucket with stirring is adjustable, and the double-layer heating can ensure uniform heating of raw materials. The pump and filling nozzle are independently heated, without dead heat spots. In addition, the foot pedal switch can be selected automatically or manually according to the product.
3. Through the gear quantitative filling method, it is more stable, fast and low noise to make the production environment more comfortable. The filling range starts from 1g without limit, which meets the diversification of filled products
4. PLC program control is adopted, and the set parameters (quantity, time, temperature control setting) are set by the PLC interface, which can accurately set the required capacity, and has great practicability and benefit for various types and diversified users.
5. The double filling system is independently controlled, with faster speed and higher production capacity, which can meet different filling requirements;
6. Two 3-meter water conveyor belts are equipped with infrared sensing positioning device, which is efficient and labor-saving.
