Component/Index | Specification |
Core Components | Motor, Gear |
Automation Level | Semi-automatic |
Power Type | Electric |
Voltage | 220V |
Power | 0.6KW |
Net Weight | 20KG |
Dimensions (L×W×H) | 40*30*40CM |
Packing Speed | 30-60 bags/minute |

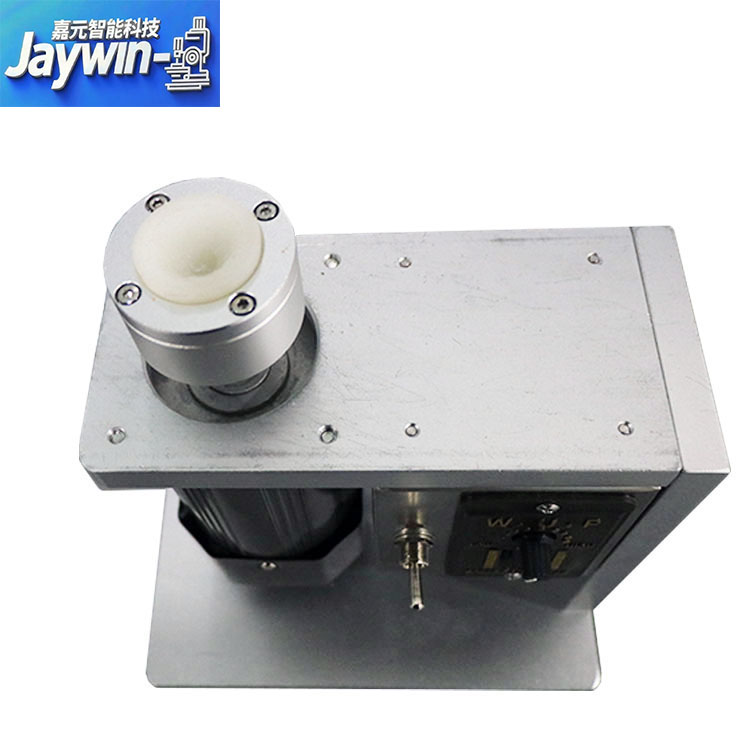

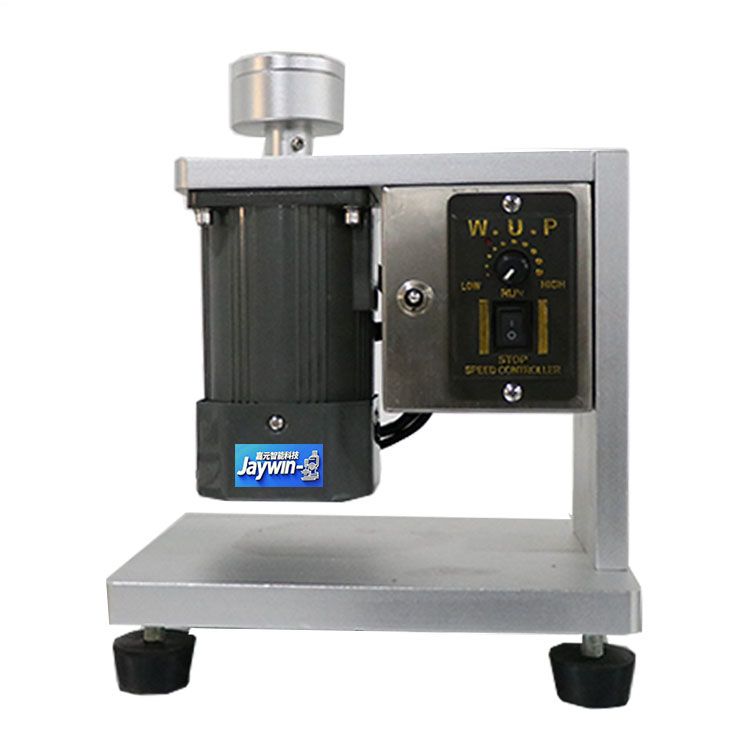

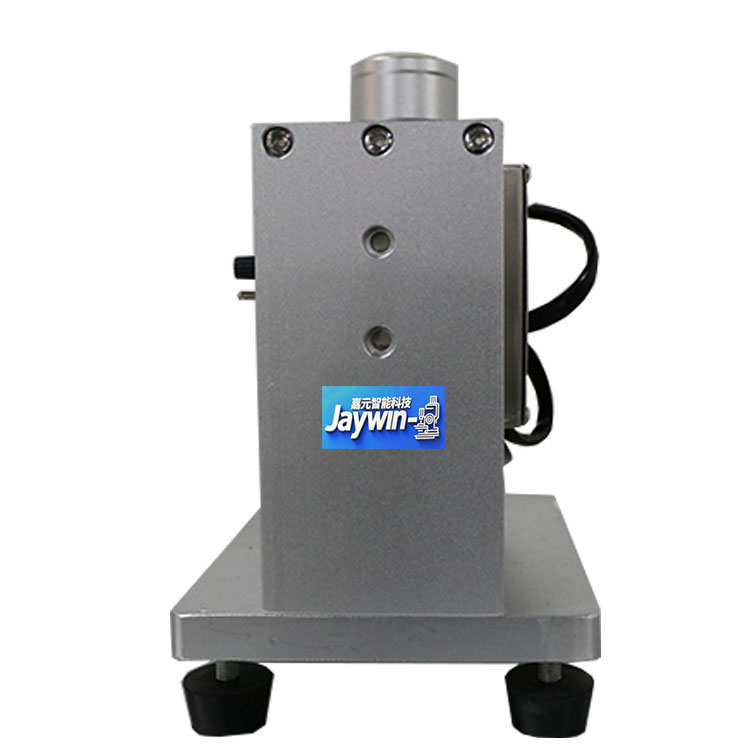

The Desktop Small Tube Twisting Machine is a compact, high-precision equipment designed for sealing cosmetic tubes (lip gloss, concealer, hand cream) in small-batch production or laboratory settings. Unlike industrial-scale lines, its desktop-sized structure (40×30×40mm) and 20kg weight enable placement on standard workbenches, saving workshop space. Equipped with direct torque electronic control technology, it ensures consistent tube twisting tightness, eliminating leakage and improving product shelf life. This machine bridges the gap between manual operation and large-scale automation, ideal for startups, R&D centers, and boutique cosmetic brands.
The machine delivers adjustable torque from 0.5 to 5.0 N·m with an accuracy of ±0.5N·m, adapting to different tube materials (laminated plastic, aluminum, PE). The auto-cycling function (start, stop, reverse) operates without continuous operator intervention, reducing fatigue and human error. It achieves a processing speed of 20-30 tubes per minute, matching the output of small filling lines.
The articulated arm with counterbalance supports the twisting head, allowing effortless positioning and absorbing torque during operation. The trigger-less on/off switch enhances ergonomics, while the quick-change chuck system enables tool replacement in 30 seconds for different tube neck sizes. The machine’s silver SUS304 body resists cosmetic chemical corrosion and is easy to wipe clean.
No professional training is required—operators can set torque parameters via a digital control panel with LED displays. It is compatible with tubes of length 30-150mm and diameter 8-25mm, covering most small cosmetic tube specifications. The “no-tube-no-twist” sensor prevents empty operation, protecting the machine and saving energy.
Core components (motor, torque sensor) have a service life of over 10,000 operating hours. The integrated filter-regulator-lubrication unit extends the pneumatic system’s life by reducing wear. Compared to manual twisting, it reduces labor costs by 60% and improves sealing consistency by over 95%.
Perfect for cosmetic labs developing new products (e.g., lip oil, cream blush), as it provides consistent sealing for stability testing. The small footprint fits into fume hoods or lab workstations, supporting sterile operation when paired with cleanroom accessories.
Boutique brands producing limited-edition items (e.g., custom lip balms, travel-size hand creams) benefit from its low setup cost and flexible output. It can be integrated with semi-automatic filling machines to form a mini production line (capacity: 1000-1500 tubes/day).
Effective for sealing tubes containing high-viscosity cosmetics like lip gloss, concealer, and hair dye. The controlled torque prevents tube deformation while ensuring the seal is tight enough to avoid leakage during transportation.
Yes, the machine needs an air supply of 0.6-0.8 MPa (≥300 L/min) for the pneumatic motor. A small air compressor (1HP) is sufficient for standalone operation, and we can provide compatible compressor recommendations.
Industrial lines have higher capacity (100+ tubes/min) but require large space and high investment. Our desktop model focuses on flexibility and compactness, with lower energy consumption (0.8kW power) and no need for professional installation—just connect power and air supply to start.
First, check if the torque setting matches the tube material (e.g., aluminum tubes need lower torque than plastic). Second, inspect the chuck for wear (replace if necessary). If issues persist, our technical team offers video troubleshooting support within 4 hours of inquiry.
