Parameter | Specification |
Power Supply | 220V 50Hz |
Installation Requirement | 220V power supply + gas source |
Total Power | 1.5kw |
PLC System | Siemens |
Touch Screen | Weinview |
Control Motor | Servo |
Gas Source | 0.3-0.6Mpa |
Dimensions (L×W×H) | 920*850*1580MM |
Production Capacity | 3-5 molds/minute |
Demolding Quantity | Aluminum mold: 1-12 pcs; Silicone-aluminum mold: 1-10 pcs |
Body Material | SUS304 stainless steel |
Net Weight | 280KG |

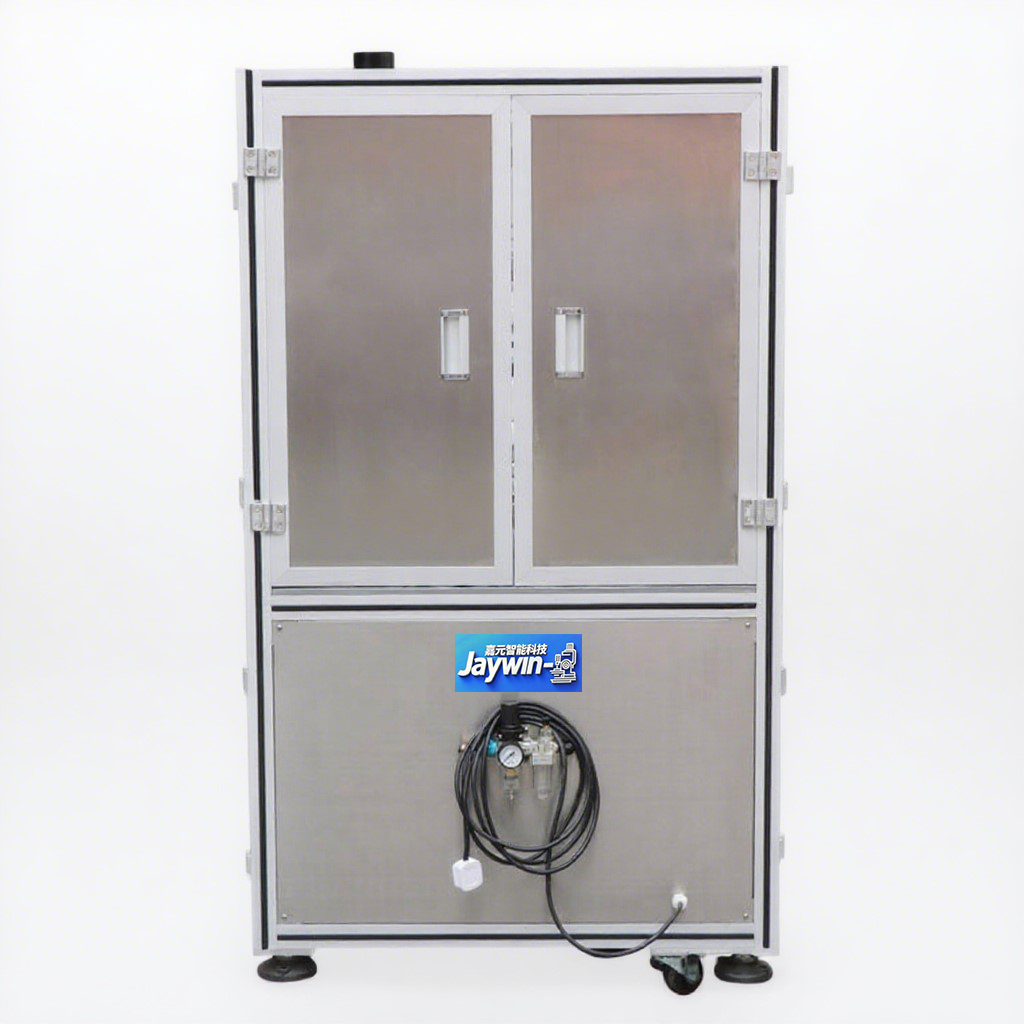

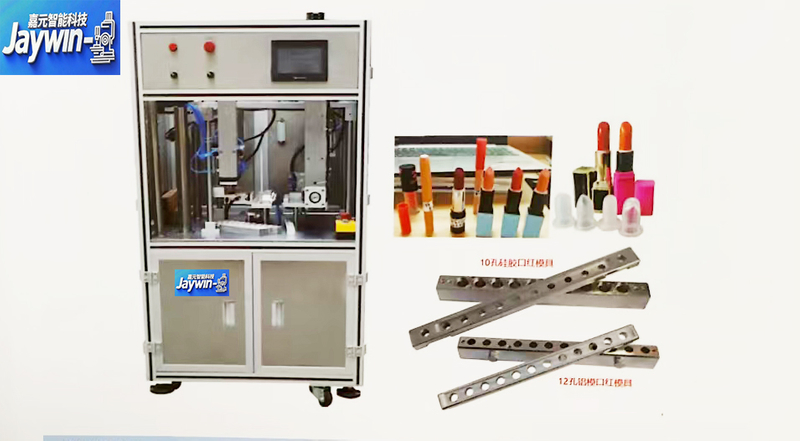

The Automatic Lipstick Demolding Machine is a specialized automation device for the cosmetic industry, engineered to remove solidified lipstick sticks from silicone or aluminum molds with minimal damage. Unlike manual demolding (which has a 15-20% product loss rate), this machine combines air-blowing and vacuum adsorption technologies to achieve near-perfect demolding, making it essential for high-volume lipstick production. Its compact design and compatibility with various lipstick diameters ensure seamless integration into existing production lines, while premium components guarantee long-term reliability .

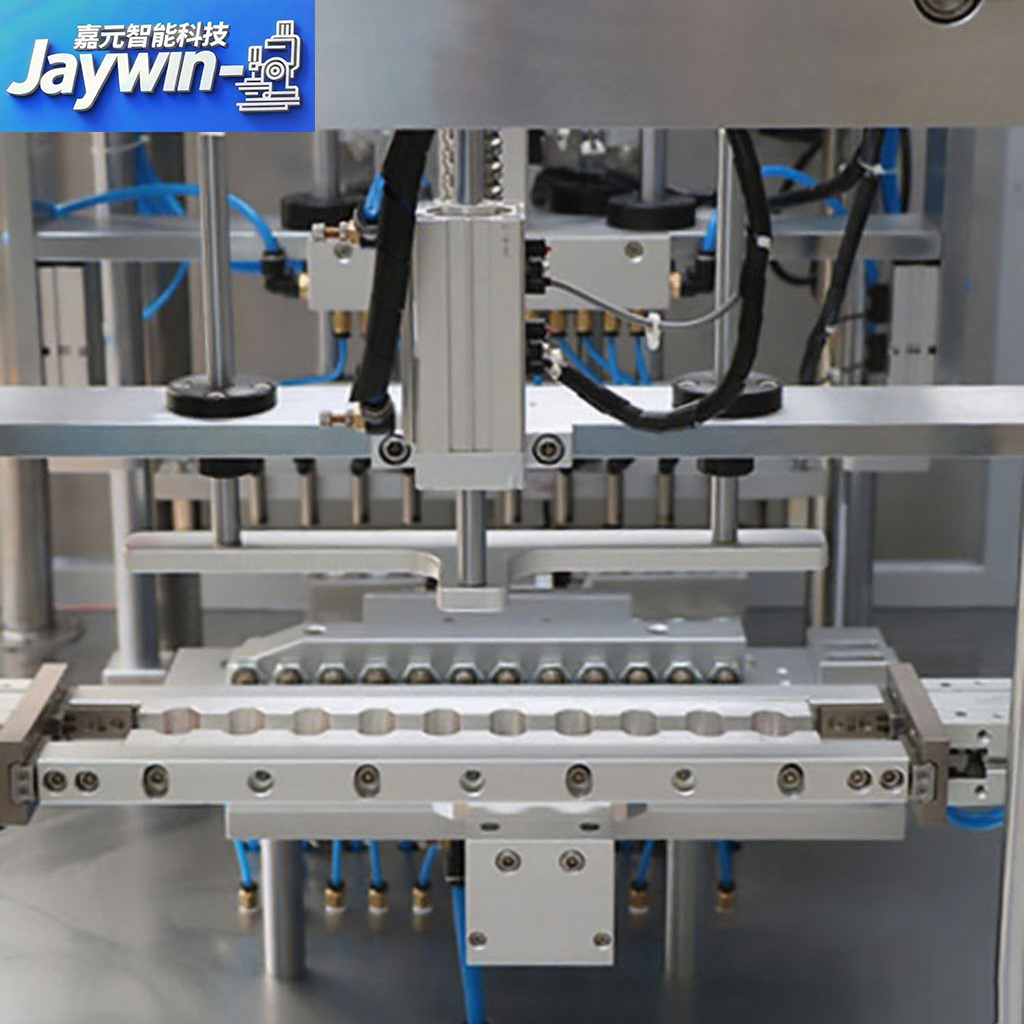

Dual Demolding Modes: Alternates between 6-8kg/cm² air-blowing (for rigid lipstick formulas) and -0.08MPa vacuum adsorption (for soft, creamy formulas), delivering a 99.8% demolding success rate .
High-Speed Production: Accommodates molds with 10-30 holes (customizable) and achieves 10-30 pieces/minute—supporting a daily output of 4,800-7,200 pieces with single-shift operation .
Durable Construction: The body is fabricated from AL6061 aluminum alloy + SUS304 stainless steel, with core components from top brands: KEYENCE sensors (position detection), SMC pneumatic elements, and Schneider electrical parts—ensuring 10,000+ hours of trouble-free operation .
User-Friendly Design: Features a 5-inch touchscreen control panel with pre-set programs for 20+ lipstick diameters (8-12mm). The machine’s compact size (0.6×0.4×1.3m, 70kg) saves factory floor space .
Mass-Production Lines: Integrates with lipstick filling and cooling systems in large cosmetic factories, reducing manual labor by 60% compared to traditional lines .
Mid-Scale Boutique Production: Suitable for brands producing 1,000-5,000 lipsticks/day, with quick mold changeover (10 minutes) to support multiple shade launches .
Specialty Lipstick Types: Handles matte, satin, creamy, and glitter lipsticks, as well as lip balms and cosmetic pencils with solid cores .
Q: How to adjust the machine for different lipstick diameters?
A: The touchscreen pre-stores parameters for common diameters (8mm, 10mm, 12mm). For custom sizes, simply input the diameter and mold hole count—the machine auto-calibrates the air pressure and vacuum level .
Q: What causes occasional demolding failure, and how to fix it?
A: Failure is usually due to low air pressure (<6kg/cm²) or mold contamination. Ensure the air supply meets 6-8kg/cm² and clean the mold with alcohol every 4 hours of operation—this restores the 99.8% success rate .
Q: Is the machine compliant with cosmetic GMP standards?
A: Yes. All product-contact surfaces use food-grade SUS304 stainless steel, and the closed design prevents dust contamination—meeting global GMP and FDA requirements .
