Parameter | Specification |
Power Supply | 380V 50Hz |
Installation Requirements | 380V power supply, air source, 10kg heat transfer oil |
Total Power | 3KW |
PLC System | XINJE |
Touch Screen | Touchwin |
Pneumatic Cylinder | Airtac |
Filling Motor | XINJE Servo Motor |
Stirring Motor Power | 60W |
Pump Heating Pipe | 800W |
Stirring Speed | 90 r/min |
Filling Quantity | 18 holes per mould |
Barrel Volume | 20L |
Production Capacity | Approximately 3 moulds per minute |
Dimension (L×W×H) | 950×820×1900mm |
Net Weight | 280kg |

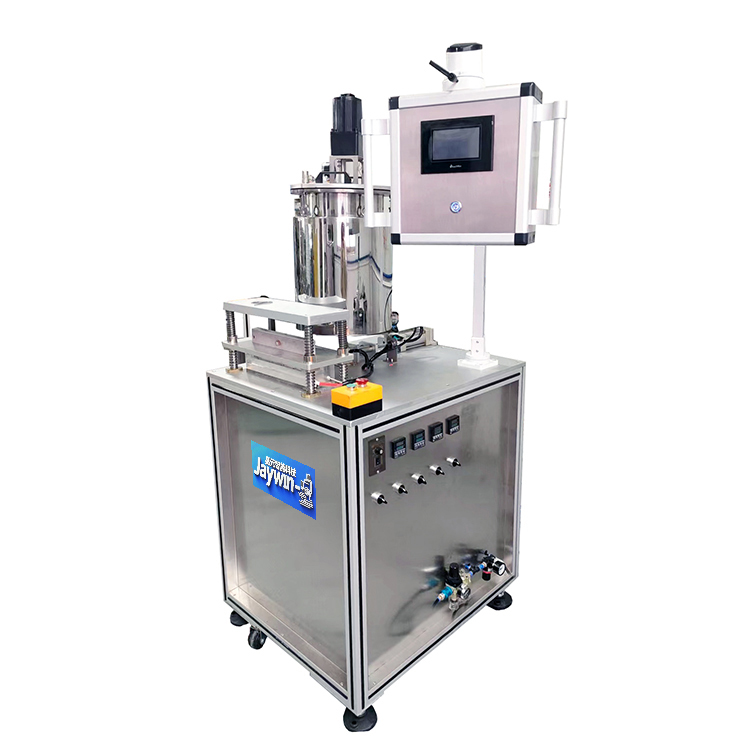

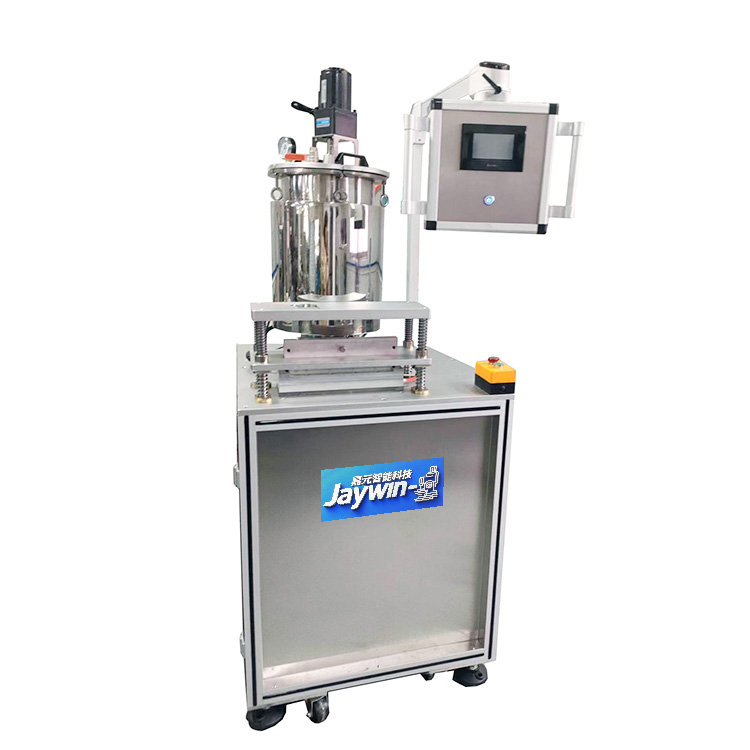

The 18 Hole Eyebrow Pencil Filling Machine is a semi-automatic cosmetic production equipment engineered for high-efficiency filling of eyebrow pencil cores and eyeliner refills. Adopting advanced PLC program control and human-machine interface technology, it simplifies operation while ensuring stable performance, making it ideal for cosmetic manufacturers pursuing batch production with consistent quality. With a focus on hot-filling processes for viscous cosmetic materials, this machine integrates independent temperature control and mixing systems, addressing the diversified needs of raw material processing in the beauty industry. Its compact structure (1000×660×1700mm) and 280kg weight allow flexible placement in production lines without occupying excessive space.
Equipped with intelligent PLC programming and a user-friendly touchscreen interface, the machine eliminates complex manual operations—all parameters including temperature, filling time, and stirring speed can be preset and adjusted digitally. The 90 rpm/min stirring motor ensures uniform mixing of materials, preventing sedimentation and air bubbles in the final product. It achieves 3-5 molds per minute filling speed, translating to a remarkable output of 4300-5400 pcs/hour for standard 18-hole molds, significantly boosting production efficiency compared to traditional manual filling.

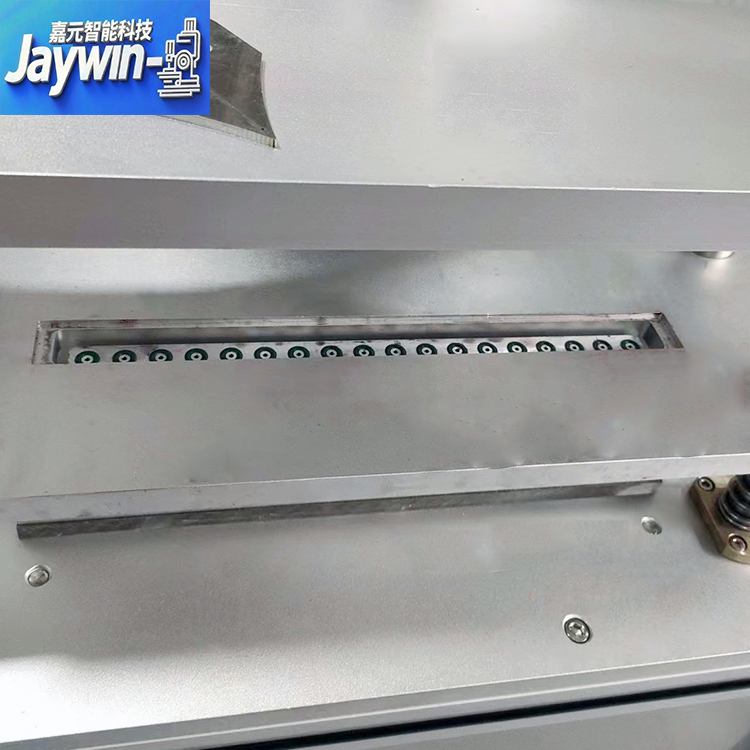

The machine features 18 independent filling nozzles with piston pump drives, delivering a filling accuracy of over 99% to ensure consistent core weight and shape. Its dual 20L SUS316L material barrels (contact parts) meet GMP standards, resisting corrosion from cosmetic ingredients like waxes and pigments. The temperature control system covers a range of 0-140℃, adaptable to different material viscosity requirements, from thin eyeliners to thick eyebrow creams.
Constructed with SUS304 stainless steel for the main body, the machine supports easy cleaning and disinfection, reducing cross-contamination risks. Key components such as pneumatic cylinders and ball valves are sourced from renowned brands (Airtac, Kitz) to guarantee a service life of over 5 years with proper maintenance. The aluminum extrusion platform further enhances hygiene by minimizing material residue accumulation.
Perfect for medium to large cosmetic factories producing eyebrow pencils, eyeliner sticks, and lip liners. It accommodates various core shapes (round, flat, triangular) by replacing molds, supporting versatile product lines without major equipment modifications.
Suitable for filling water-based, oil-based, and wax-based materials, including waterproof eyebrow formulas and matte eyeliner compositions. The independent temperature control of each barrel allows simultaneous processing of two different formulas, ideal for manufacturers with diverse product portfolios.
Its bubble-free filling technology ensures the finished pencil cores have a smooth, satiety appearance, meeting the high-quality standards of premium cosmetic brands. The consistent output also reduces product rejection rates, lowering production costs.
The machine is designed for materials with viscosity up to 10,000 cP, covering most eyebrow pencil and eyeliner core formulations. For ultra-high viscosity materials, custom-made auger feeding systems are available upon request.
Based on a 3-5 molds/min speed and 18-hole mold configuration, the theoretical capacity is 4300-5400 pcs/hour. Actual output may vary slightly depending on mold change frequency and material temperature, typically maintaining over 90% of the theoretical value.
The machine comes with a 1-year warranty for core components (motor, PLC, pumps). We offer 24/7 online technical support and video-guided maintenance tutorials. Spare parts can be delivered within 7 days globally.
