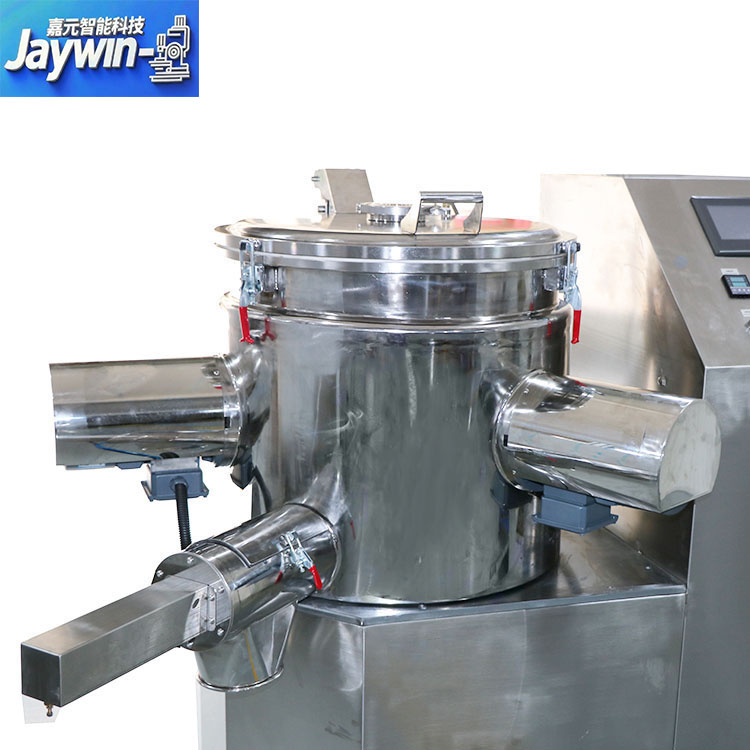

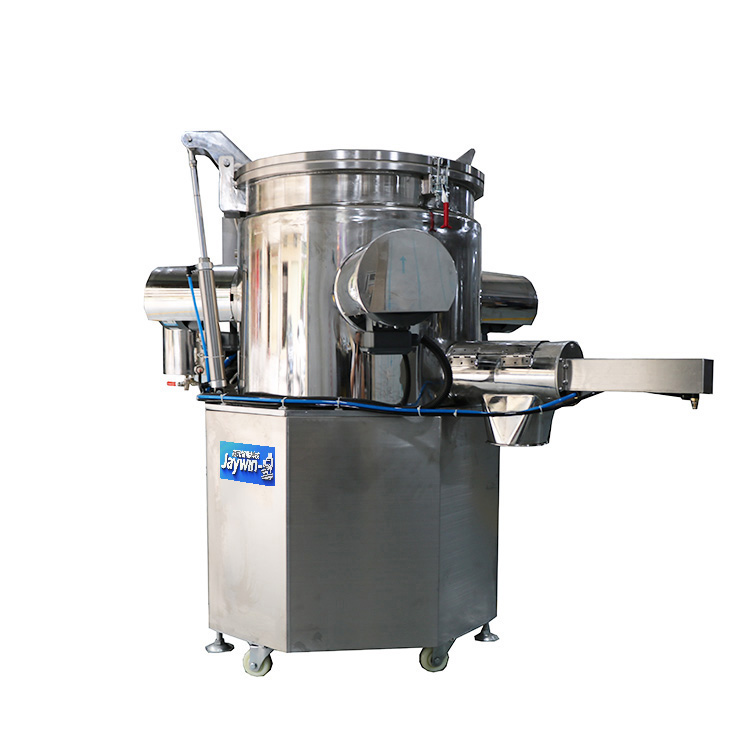

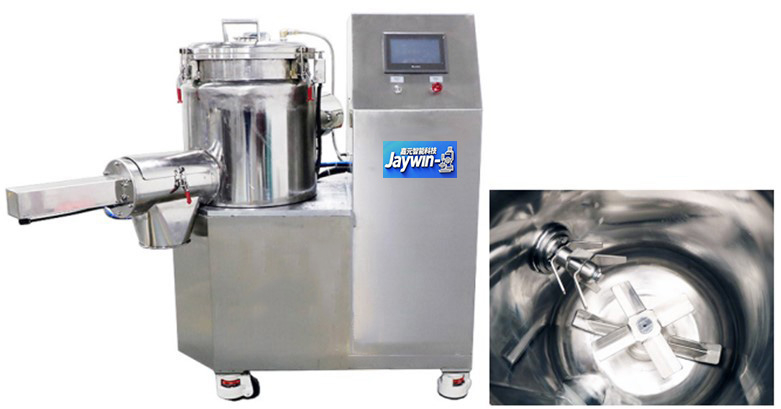

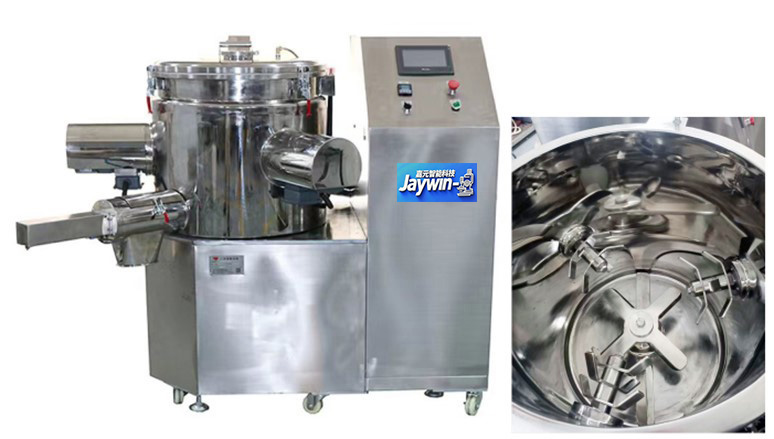

SLJF Series High-Speed Powder Mixing Homogenizer adopts advanced multi-shaft mixing technology, with two stirring motors stirring raw materials from different angles at the bottom and side of the barrel. Through the actions of crushing, shearing, collision and stirring on the raw materials, various components can be quickly and evenly mixed. This series of machines are ideal production equipment for high-grade powder cakes, blushes, eye shadow semi-finished raw materials. The whole machine is made of SUS304 stainless steel, which meets the hygiene requirements of various industries. Equipped with an automatic oil injection device and a water circulation cooling system, it ensures the mixing effect and the stability of the machine during operation.
Parameter | SLJF-2J15KG | SLJF-4J25KG | SLJF-4J50KG |
Power supply voltage | Three-phase 380V 50HZ | Three-phase 380V 50HZ | Three-phase 380V 50HZ |
Machine installation requirements | 380V power supply (10 square 5-core wire), air source, circulating water | 380V power supply (10 square 5-core wire), air source, circulating water | 380V power supply (10 square 5-core wire), air source, circulating water |
Inverter brand | TAIDA | TAI DA | TAI DA |
Total power | 13.5KW | 21KW | 45KW |
Main motor power | 11KW | 15KW | 37KW |
Main motor speed | 2500R/MIN (frequency conversion speed regulation) | 2500R/MIN (frequency conversion speed regulation) | 2500R/MIN (frequency conversion speed regulation) |
Side motor power | 1.5kw*1 | 1.5kw*3 | 2.2kw*3 |
Side motor speed | 2500 rpm | 2500 rpm (frequency conversion speed regulation) | 2500 rpm (frequency conversion speed regulation) |
Open cover cylinder | MA40*250 | MA40*250 | MA40*250 |
Powder Out cylinder | SC50*250 | SC50*250 | SC50*250 |
Barrel size volume | 45cm(d)*23cm(h) about 79L | 55cm(d)*55cm(h) about 130L | 200L |
Material | Stainless steel (SUS304) | Stainless steel (SUS304) | Stainless steel (SUS304) |
Production capacity | 5-15kg/bucket | 10-25kg/bucket | 20-50kg/bucket |
Dimension(LWH) | 1550*1150*1300MM | 1730*1520*1400MM | 150*170*160CM |
Weight | 450kg | 500kg | 1500kg |
Side motors operate at 2500rpm (frequency-adjustable: 500-2500rpm) for efficient particle dispersion, ensuring no agglomeration—even for cohesive powders (e.g., titanium dioxide, silica powder). The homogenizer head uses a dual-impeller design that breaks up lumps into particles ≤50μm, critical for cosmetic products like BB creams (requires smooth texture).
An automatic oil-spray system with a 0.5mm micro-hole nozzle delivers mist-like oil addition, improving blending uniformity by 30% compared to manual pouring. The spray volume is adjustable (0.5-5L/h), allowing precise control of oil-powder ratios—essential for products like cream blushes and lip powders, where oil content affects adhesion and longevity.
A water circulation cooling jacket surrounds the tank, preventing heat buildup (≤50℃) during high-speed operation—protecting heat-sensitive ingredients like vitamin C, retinol, and natural plant oils (which may oxidize at high temperatures). The cooling system connects to standard industrial water supplies (pressure: 0.2-0.4MPa) for easy integration.
A pneumatic cylinder-driven tank tilting mechanism enables 360° rotation, allowing complete material discharge without residue (residual rate <0.5%). The discharge port (diameter: 150mm) is fitted with a quick-connect flange for direct connection to filling machines, reducing material transfer steps and contamination risks.
Cosmetics: Production of pressed powder, BB cream bases, sunscreen formulations, cream blushes, and body scrub powders (blending exfoliating particles with essential oils).
Pharmaceuticals: Mixing of medicinal powders (e.g., antibiotic powders) and ointment precursors (e.g., petroleum jelly with active ingredients), where uniformity affects dosage accuracy.
Food: Preparation of nutritional powder blends (protein powder + vitamin additives), flavoring pastes (cocoa powder + vegetable oil), and baby food powders (requires strict hygiene and uniformity).
Personal care: Blending of body wash powders with moisturizing oils and fragrance oils for solid soap bars and bath bombs.
Q: What is the mixing accuracy?
A: Achieves ±0.5% uniformity (tested via laser particle size analyzer), meeting ISO 22117 (cosmetic industry) and USP <788> (pharmaceutical industry) quality standards. Sample testing kits are available to verify uniformity before full-scale production.
Q: Is the machine movable?
A: Yes, it features 4 lockable casters with a load-bearing capacity of 150kg each, ensuring stable movement even when the tank is fully loaded with 200L of material (total weight: ~300kg). The casters are made of wear-resistant rubber to avoid scratching workshop floors.
Q: Can it handle wet materials?
A: Designed for both dry powder blending and wet paste mixing (viscosity up to 50,000 cP), such as thick cosmetic creams and pharmaceutical ointments. For ultra-high viscosity materials (>50,000 cP), we offer an optional high-torque bottom motor (15kw) to maintain mixing efficiency.
