Item | Details |
Power Supply Voltage | 220V 50Hz |
Power Consumption | 0.1kw |
Atmospheric Pressure | 0.2Pa |
Production Capacity | 10 pcs/mold |
Dimensions (L×W×H) | 605*450*600mm |
Net Weight | 15kg |

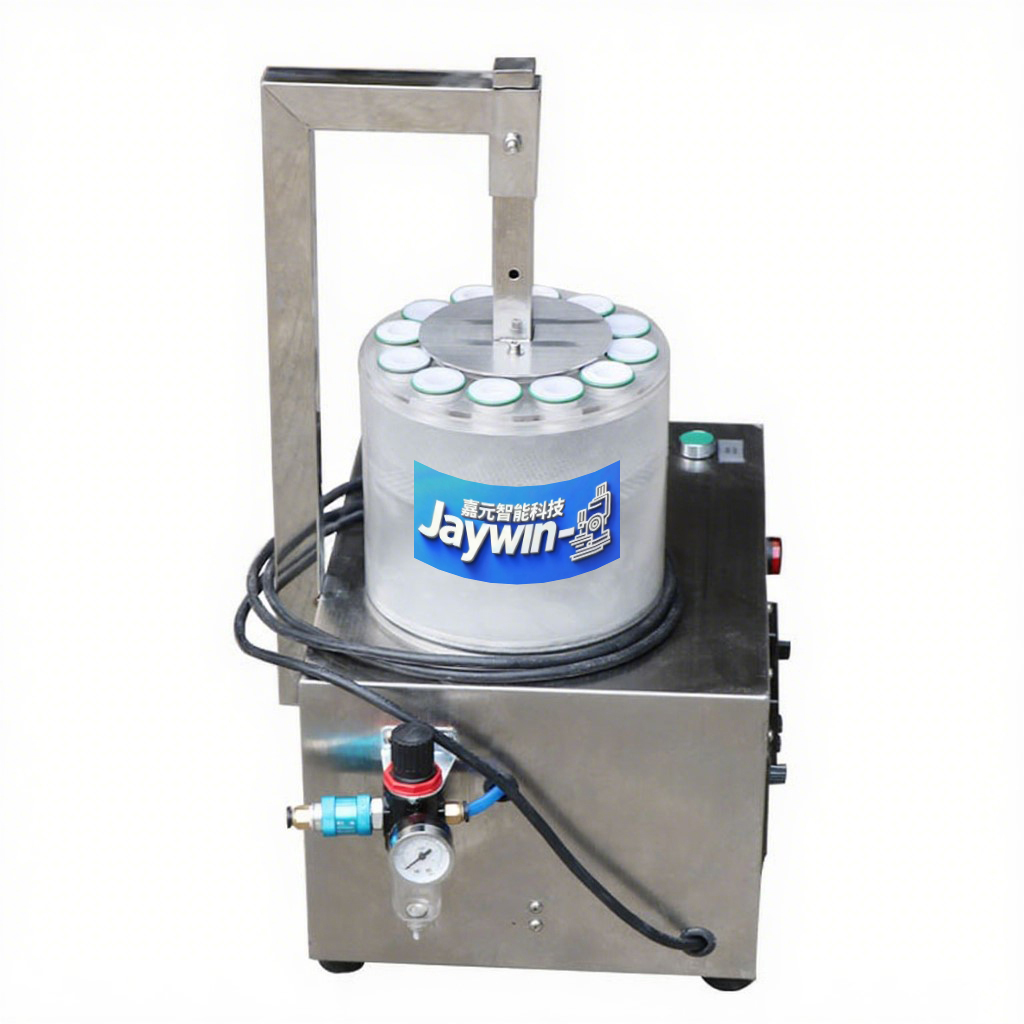

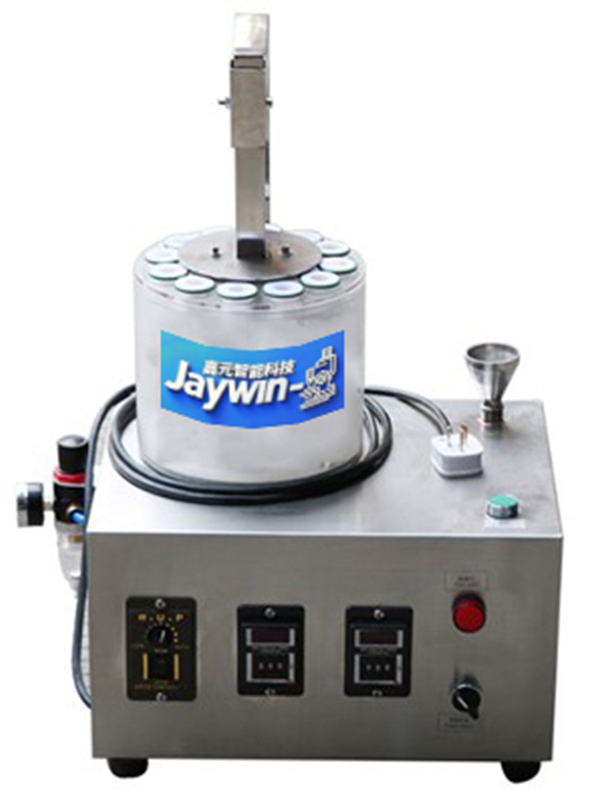

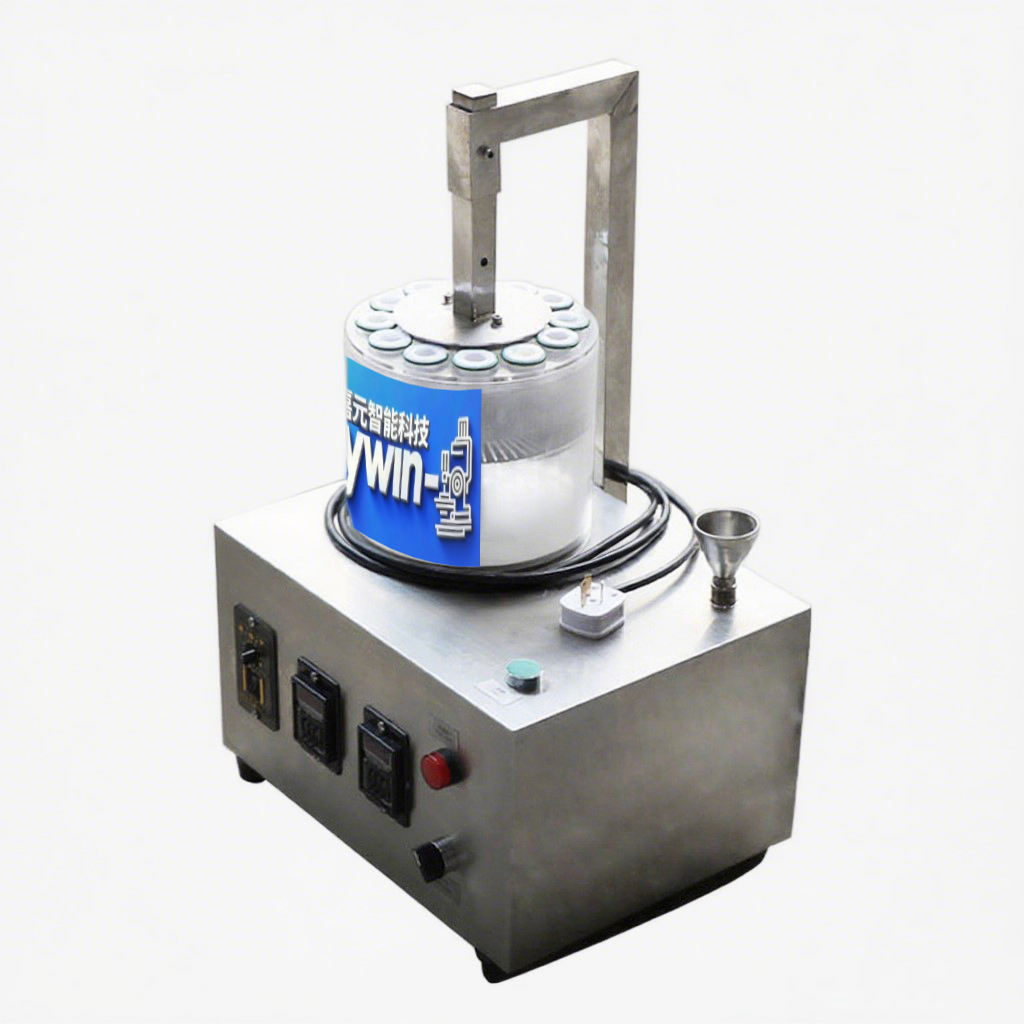

A specialized coating system designed exclusively for applying pearl, glitter, or metallic powders to lipstick surfaces, utilizing servo-controlled lifting mechanisms and precision low-pressure spraying to create customizable shimmer effects. Unlike generic spraying equipment, it is engineered to handle the curved, delicate surface of lipsticks without causing melting or texture damage. The system enables one-step application of 1-3 powder layers, supporting high-end cosmetic brands in enhancing product aesthetics while maintaining lipstick functionality (e.g., moisturization, wear time).
A servo motor-controlled lifting bracket adjusts spray height (0-40mm) with ±0.1mm accuracy, allowing for uniform application of 1-3 powder layers. Each layer’s powder density (10-30g/m²) is adjustable via the touchscreen, enabling customization of shimmer intensity—from subtle pearl glow (10-15g/m²) for everyday lipsticks to bold metallic shine (25-30g/m²) for special-occasion products. The lifting bracket moves at a programmable speed (5-15mm/s) to ensure even coverage on lipstick’s tapered surface.
Equipped with low-pressure atomizing nozzles (operating at 0.3-0.5MPa) that break down powder particles into a fine mist, preventing agglomeration and ensuring 95% powder adhesion to the lipstick surface. The low pressure is critical: it avoids melting lipstick waxes (a common issue with high-pressure sprays) and preserves the lipstick’s smooth, creamy texture. A post-spray air-blow function removes loose powder, further improving adhesion.
Features interchangeable powder hoppers (50kg capacity each) with color-coded labels for easy identification, allowing color switching in 20 minutes—30% faster than traditional spraying systems. Each hopper includes a built-in agitator that runs at 30-50 RPM, preventing powder settling (especially common with fine glitter particles) and ensuring consistent flow during spraying. The hopper’s interior is coated with a non-stick material to minimize residue, reducing cross-color contamination.
Integrates high-precision photoelectric switches with ±0.1mm detection accuracy, which identify the lipstick’s position on the conveyor belt. This triggers automatic synchronization of spraying and conveying, ensuring the spray starts exactly at the lipstick’s base and stops at the tip—avoiding over-spray on packaging or the lipstick’s metal case. The system also includes a missing-lipstick detection function that pauses spraying to prevent powder waste.
Specialized in creating high-end aesthetic effects on lipsticks, lip gloss sticks, and lip balms, including pearl luster, metallic sheen, and holographic glitter effects. It can also apply decorative powder accents (e.g., logo stamping, gradient color transitions) to lipstick caps or packaging, creating a cohesive luxury look for product lines.
Supports small-batch production of personalized lipstick designs, a growing trend among luxury cosmetic brands. For example, it can create limited-edition lipsticks with custom shimmer patterns (e.g., star-shaped glitter, brand monograms) or seasonal color accents (e.g., gold shimmer for holiday collections), helping brands differentiate in a competitive market.
Compatible with a wide range of decorative powders, including mica-based pearls, synthetic glitter (polyester or biodegradable), natural mineral powders (e.g., titanium dioxide for pearlescence), and color-shifting pigments. For eco-conscious brands, it works seamlessly with biodegradable glitter and plant-based pearl powders, aligning with sustainable production practices.
The spray thickness ranges from 0.1-0.5mm per layer, with adjustments possible in 0.05mm increments for precise control. Thinner layers (0.1-0.2mm) create a natural, subtle shimmer ideal for everyday lipsticks, while thicker layers (0.4-0.5mm) deliver a dramatic, eye-catching effect for statement products. The touchscreen displays real-time thickness data for consistency.
Yes, it accommodates standard lipstick diameters (8-12mm) with adjustable conveying fixtures. For specialty formats—such as square, tapered, or jumbo-sized lipsticks (up to 15mm diameter)—custom fixtures can be manufactured with a 7-10 day lead time. The photoelectric sensors automatically recalibrate for different sizes, requiring no manual adjustment.
A built-in vacuum recovery system captures 85% of excess powder, which is stored in a sealed, labeled container to prevent cross-contamination. Recovered powder can be reused for up to 3 cycles without compromising spray quality, reducing material costs and supporting sustainable production. The vacuum filter is easy to clean, with replacement recommended every 100 hours of operation.
