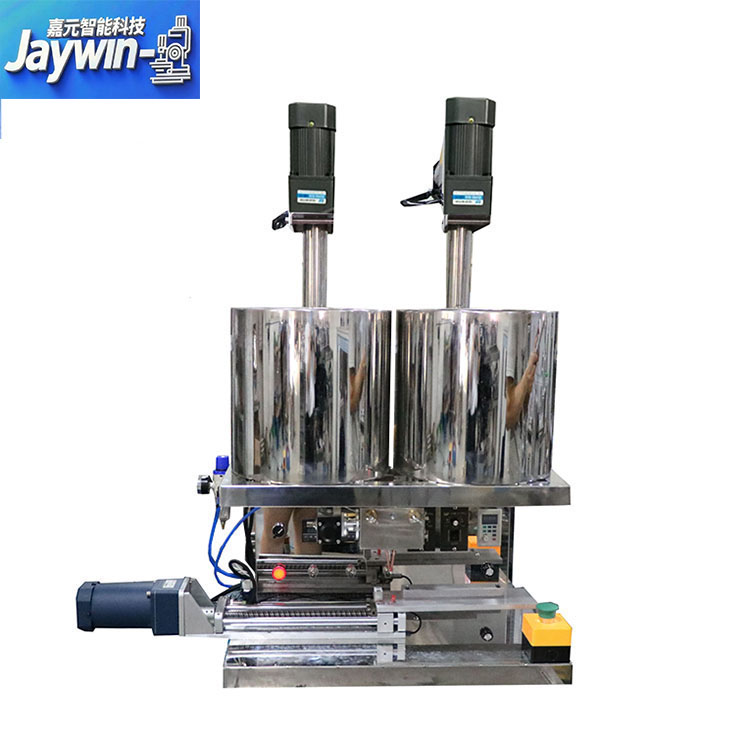

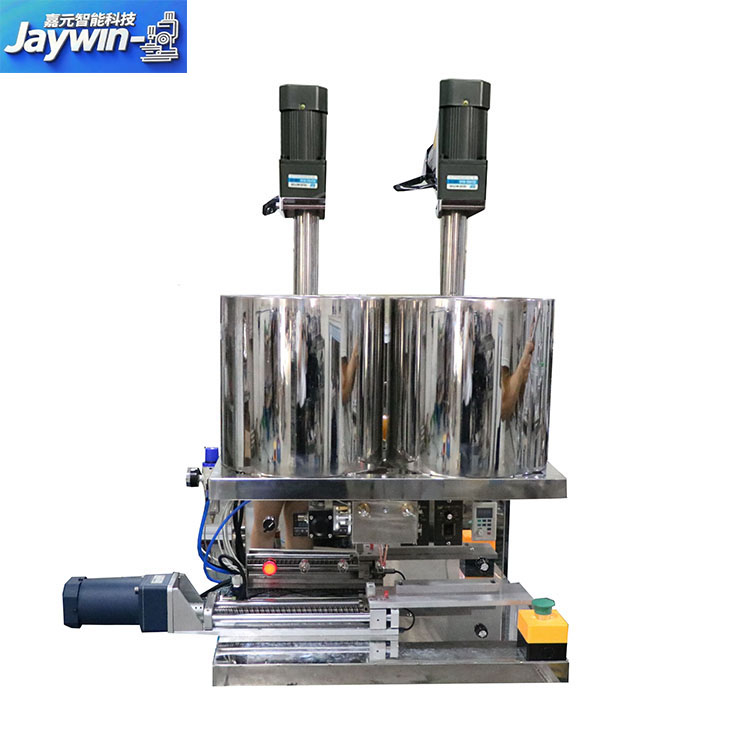

Dual-Color Lipstick Filling Machine features two independent material barrels that enable simultaneous filling of two different formulations or colors, opening creative possibilities while maintaining production efficiency. Building on the proven technology of single-color filling machines, this dual-system model retains the same precision temperature control and user-friendly operation while doubling the creative potential. Constructed to meet the stringent standards of cosmetic production, the machine ensures accurate color separation and uniform filling, making it an essential tool for premium lipstick manufacturing.
Parameter | Specification |
Power Supply | 220V/50Hz |
Installation Requirements | 220V power supply, 10kg heat transfer oil |
Total Power | 2.2KW |
Production Capacity | Approximately 15 seconds per mold |
Barrel Volume | 10L × 2 barrels |
Temperature Range | 0-150℃ |
Stirring Speed | 0-90 r/min |
Dimension (L×W×H) | 550×450×1080mm |
Net Weight | 45KG |
Features two 10L barrels with separate temperature controls, allowing simultaneous processing of two different colors or formulations without cross-contamination.
Each barrel utilizes advanced layered heating technology to maintain precise temperatures within the 0-150℃ range, ensuring optimal viscosity for each formulation independently.
Coordinates the filling process from both barrels to create perfect color separation and pattern consistency in dual-color lipstick designs, enhancing product aesthetics.
Equipped with adjustable speed motors offering 0-90 r/min control for each barrel, ensuring proper homogenization of each formulation while preventing air bubbles.
Despite its dual functionality, the machine maintains a space-efficient footprint (550×450×1080mm) that integrates easily into existing production lines.

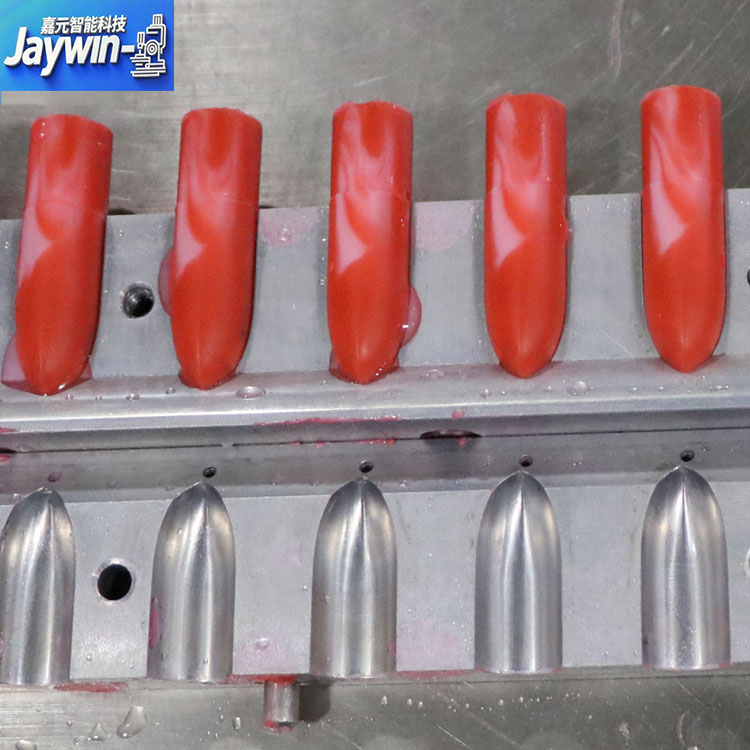

Specialized for creating two-toned lipstick designs, allowing cosmetic brands to offer innovative products with unique color combinations and patterns.
Capable of producing gradient or ombre effects by precisely controlling the ratio and placement of two complementary colors.
Enables production of lipsticks with different textures in each section, such as combining matte and glossy finishes in a single product.
Ideal for limited-edition dual-color releases or market testing new color combinations without investing in separate production lines for each color.
The independent 10L × 2 barrels system features separate heating elements, stirring mechanisms, and filling nozzles, ensuring complete isolation between the two color formulations.
Yes, the filling parameters can be adjusted to control the proportion of each color, allowing for various design effects from equal halves to subtle accent stripes.
Despite handling two colors simultaneously, the machine maintains an efficient production rate of approximately 15 seconds per mold, comparable to single-color machines.
The machine features easy-access components and smooth surfaces that simplify cleaning. Each barrel system can be cleaned independently, allowing efficient changeover between color combinations.
Yes, the machine offers flexibility to operate with one barrel when dual-color production isn't required, making it a versatile addition to production facilities with varying needs.
