You can transform your liquid cosmetic production line by adopting closed-loop filling systems. These advanced systems create a fully sealed, continuous fluid pathway from your bulk tank to the final packaging. Unlike traditional open-hopper systems that expose your product to surrounding air, closed-loop technology protects your liquid formula completely. You no longer need to struggle with raw material loss, volatile ingredient evaporation, batch inconsistency, or microbial contamination risks. By Eliminating Waste at every transfer stage, you protect sensitive active ingredients while boosting overall factory output cleanly and efficiently.
Closed-loop filling systems seal fluid pathways completely to prevent air exposure and keep sensitive ingredients strong.
Precision pumps and anti-drip nozzles eliminate product waste and deliver exact fill volumes in every container.
Automated Clean-in-Place systems recover up to 98% of leftover formula and cut line cleaning time by 70%.
Sealed stainless steel equipment blocks microbial contamination and lowers operational costs by up to 20%.

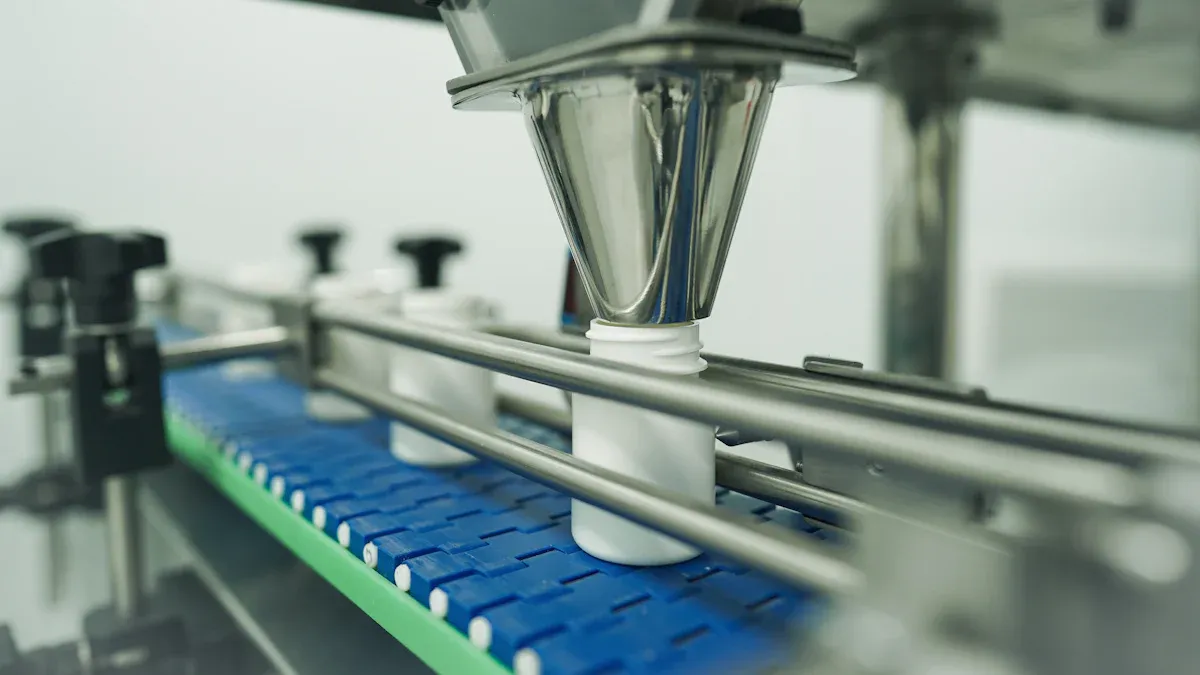

Image Source: unsplash
You control every aspect of your liquid formula when you utilize closed-loop filling mechanics. This technology seals your entire process, delivering consistent quality from tank to bottle.
Sealed delivery lines isolate your product completely from ambient air. You prevent atmospheric exposure, oxidation, and raw material degradation in active liquid formulations. Your vitamins, botanical extracts, and active ingredients retain full potency throughout the entire filling run.
Key Takeaway: Eliminating air exposure preserves sensitive active ingredients and prevents costly batch spoilage.
You achieve accurate dosing and prevent container overfilling by choosing the right positive displacement pump system for your product viscosity:
Servo-Driven Piston Pumps: Utilize precise motor control over stroke position and speed. You gain tight volume tolerances within a ±0.5% range, making them ideal for high-value premium cosmetics.
Gear Pump Systems: Rely on continuous gear rotation to maintain steady fluid pressure and high output speeds. You can make rapid format adjustments easily for standard creams, serums, and cosmetic oils.
Pump Type | Filling Accuracy & Precision | Primary Operational Focus |
|---|---|---|
Servo-Driven Piston Pump | High accuracy (within ±0.5%) | Precise cycle-by-cycle volume control |
Gear Pump | Continuous flow volume | High-speed processing and quick setup changes |
You safeguard volatile ingredients and maintain liquid clarity using integrated nitrogen blanketing and deaeration. The system injects dry nitrogen gas into the head space of your closed pathway, displacing trapped oxygen and room air. This gas barrier prevents vapor loss in volatile compounds. Simultaneously, deaeration units eliminate air micro-bubbles during high-speed fluid transfer, ensuring clear, smooth product presentation in every container.

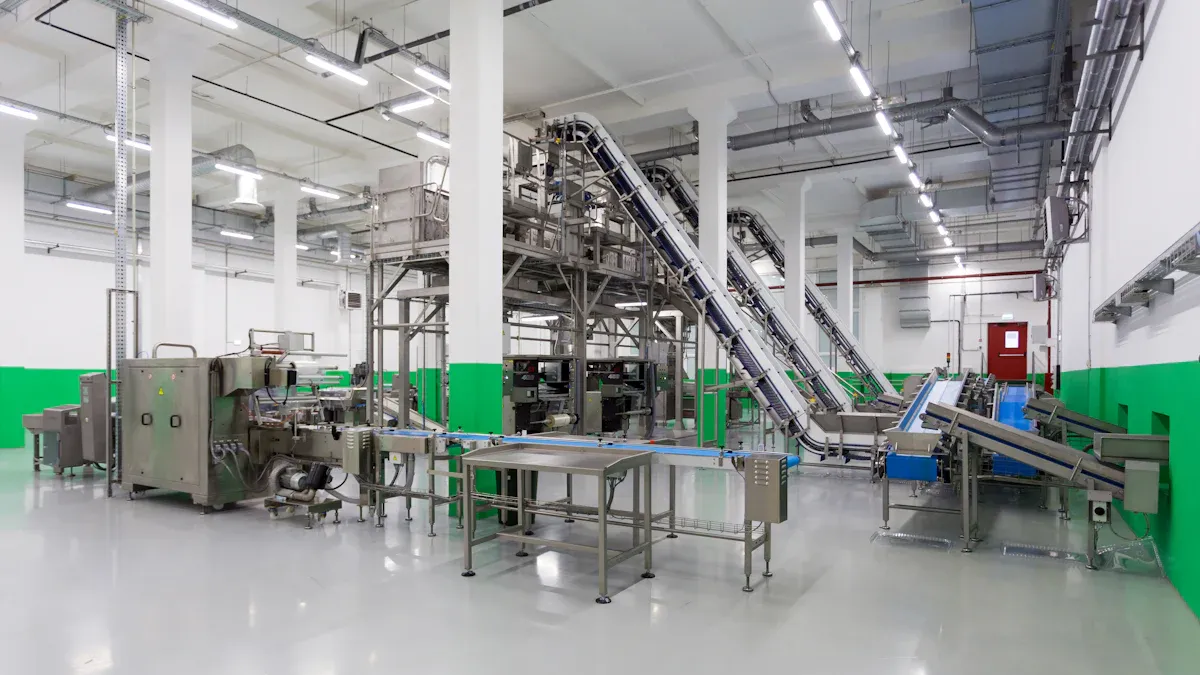

Image Source: unsplash
You drastically reduce formula loss across every manufacturing batch by integrating closed-loop automation into your facility.
Continuous recirculation loops prevent formula loss during production delays. Liquid moves constantly through sealed pipes instead of standing still inside transfer lines. When you pause the line or launch a new batch start-up, excess liquid flows automatically back to the main storage hopper. You avoid purge losses, maintain uniform mixture viscosity, and keep your production clean without discarding product.
Efficiency Tip: Recirculation mechanisms redirect unused liquid instantly, saving several kilograms of active formula during routine line stops.
Uncontrolled drips ruin packaging aesthetics and waste premium raw materials. You solve this challenge with advanced nozzle engineering. Jaywin Machinery integrates anti-drip diving nozzles into high-precision equipment like the Gear pump cosmetic liquid foundation cream filling machine. This machine features independently heated pumps and material buckets. The uniform heat distribution eliminates material stringing and tailing, ensuring clean cuts at the nozzle tip during high-speed fills.
Traditional wash routines throw away usable product trapped inside pipe pathways. Integrated Clean-in-Place (CIP) and Sterilization-In-Place (SIP) systems recover this leftover liquid efficiently before wash cycles begin:
Formula Recovery: Air displacement systems push active formulas out of lines into storage vessels.
Automated Rinsing: High-pressure spray nozzles scour internal pipe surfaces completely.
Effluent Control: Reclaiming residual liquid lowers wastewater volume while Eliminating Waste before line sanitation.
You shorten wash cycles from hours to minutes while maximizing your usable formula yield on every run.
You protect product integrity while maximizing formula yield when you upgrade to closed-loop processing. Sealed lines maintain hygienic safety and safeguard your investment from batch spoilage.
Open hoppers expose delicate active ingredients to dust, mold spores, and ambient bacteria. Closed-loop filling systems isolate your liquid product entirely from external contaminants. You eliminate airborne exposure, drastically lowering your risk of microbial contamination.
Furthermore, material selection plays a vital role in surface hygiene. High-grade liquid contact parts prevent chemical reactions and surface degradation:
Attribute / Property | SUS304 Standard | SUS316L Advantage |
|---|---|---|
Chemical Composition | Standard Chromium-Nickel base | Contains added Molybdenum and lower carbon content |
Corrosion Resistance | Moderate | Superior protection against hydrochloric acid, harsh acids, and strong alkaline solutions |
Pitting Resistance | Susceptible in high-chloride conditions | Highly resistant to localized pitting corrosion |
Weld Area Integrity | Risk of intergranular corrosion | Exceptional resistance to intergranular corrosion post-welding due to low carbon profile |
By using SUS316L stainless steel contact parts, your equipment resists pitting from cosmetic salts and pH balancers. Smooth internal surfaces prevent bacterial harboring and keep your liquid lines sterile.
You achieve uniform product quality across every single shift. Closed-loop technology controls key physical factors including temperature, pressure, and flow rates. Volatile ingredients cannot evaporate, so your formula retains its exact concentration. You deliver identical color, texture, and viscosity in every bottle, bottle after bottle.
Quality Note: Constant pressure control eliminates weight fluctuations, helping you maintain perfect package fill volumes.
You streamline regulatory compliance by eliminating cross-contamination risks. Closed systems directly align with ISO 22716 and cosmetic Good Manufacturing Practice (GMP) guidelines. Full line containment simplifies validation procedures, cleans easily, and provides reliable batch traceability for your auditing requirements.
Investing in closed-loop technology delivers immediate financial returns for your cosmetic production facility. You convert operational inefficiencies into direct profit by controlling material recovery and operational schedules.
High-value cosmetic active ingredients increase your bulk production expenses. Traditional open systems leave significant formula residues behind in tanks and pipe bends during production runs. Closed-loop systems recover up to 98% of this residual product through automated fluid displacement before wash cycles begin.
Standard System Yield Loss: 5% - 8% per batch
Closed-Loop System Yield Loss: Under 1% per batch
By Eliminating Waste in your main delivery lines, you save thousands of dollars annually on raw ingredient costs. You preserve high-potency serums, foundations, and essential oils that would otherwise wash down the drain.
Manual wash-downs consume valuable operator time and stop your manufacturing lines for hours. Integrated Clean-in-Place systems automate internal line sanitation with pre-programmed flushing cycles.
ROI Insight: Automated cleaning reduces changeover time by up to 70%, letting you run multiple short product batches every single day.
You reduce labor costs while maximizing overall equipment effectiveness. Your technicians spend less time scrubbing components and focus more time on output production.
Wastewater disposal fees create an ongoing financial burden for cosmetic plants. Standard open systems send massive amounts of formula-contaminated rinse water into municipal drains, leading to heavy regulatory surcharges.
Operating Metric | Open Hopper Setup | Closed-Loop CIP Setup |
|---|---|---|
Water Consumption | High volume per wash | Low, recycled volume |
Effluent Surcharges | Expensive treatment fees | Minimal compliance costs |
Chemical Usage | Heavy detergent needs | Precise, automated dosing |
Closed recovery pathways drastically lower chemical oxygen demand in your wastewater. You cut discharge treatment fees and consume significantly less fresh water during daily sanitation routines.
Transitioning your factory to closed-loop technology requires a clear action plan. You can upgrade existing packaging lines smoothly by following a structured integration process.
You must first evaluate your current production line setup to identify efficiency gaps. Inspect your piping layout, pump pressure capability, and valve connections for atmospheric leak points. Assess your liquid formulation traits, focusing on viscosity and thermal sensitivity. This audit helps you decide between retrofitting sealed delivery manifolds onto current lines or replacing outdated open-hopper machinery completely.
Jaywin Machinery designs specialized closed-loop equipment engineered for hygienic perfection and product yield. You can handle dense foundation formulas with the Gear pump cosmetic liquid foundation cream filling machine, which utilizes uniform heating channels to maintain ideal flow. For hot-pour cosmetic formulas, the Lipstick Filling Machine offers superior high-viscosity adaptability.
Engineering Advantage: Both systems feature durable SUS316L stainless steel fluid pathways and precise PLC touch controls, ensuring compliance with strict international GMP safety standards.
You achieve long-term line stability through a disciplined implementation process. Start with baseline parameter testing to establish optimal flow rates, filling speeds, and heating ranges. Next, conduct comprehensive operator training to streamline daily line operations and wash routines. Finally, select automated flow control methods to maintain long-term filling precision for shear-sensitive cosmetic liquids:
Positive Displacement Systems: Manage thick and shear-sensitive cosmetic liquids smoothly without breaking down liquid emulsion structures.
Peristaltic & Progressive Cavity Pumps: Maintain gentle fluid handling to preserve product integrity while ensuring highly accurate and consistent long-term dispensing.
Automated sensors continuously feed real-time flow data back to your main PLC panel. You maintain absolute fill volume consistency across every production shift while Eliminating Waste permanently.
Closed-loop filling systems stop raw material loss, prevent contamination, and boost factory profitability. Integrating automated systems into your production lines helps you reduce overall operational expenses by up to 20% while maintaining strict product quality standards.
Since 2004, Jaywin Machinery has engineered customized, high-precision cosmetic production lines. You gain maximum equipment performance while easily meeting international GMP standards. Start Eliminating Waste on your packaging line today. Contact the technical team at Jaywin Machinery to request your custom liquid filling consultation and line audit.
You keep your liquid cosmetic products in a completely sealed fluid pathway. The system isolates active ingredients from ambient air. Nitrogen blanketing replaces trapped oxygen inside delivery lines, protecting delicate botanical extracts and vitamin C from atmospheric degradation.
Yes, you can easily process high-viscosity liquids. Machines like the Jaywin Gear pump cosmetic liquid foundation cream filling machine use double-layer heated buckets and positive displacement pumps to move thick pastes smoothy without liquid tailing.
Tip: Independent pump heating keeps high-viscosity formulas fluid throughout high-speed production runs.
You reduce equipment cleaning downtime by up to 70%. Integrated Clean-in-Place systems automatically flush internal pipe pathways and recover residual formula before wash cycles. Your operators skip manual line teardowns and complete product changeovers quickly.
You prevent corrosion and product contamination. SUS316L stainless steel contains molybdenum, offering superior resistance against acids, cosmetic salts, and harsh cleaning agents. Smooth contact surfaces prevent bacterial growth, maintaining international GMP safety standards on your line.
